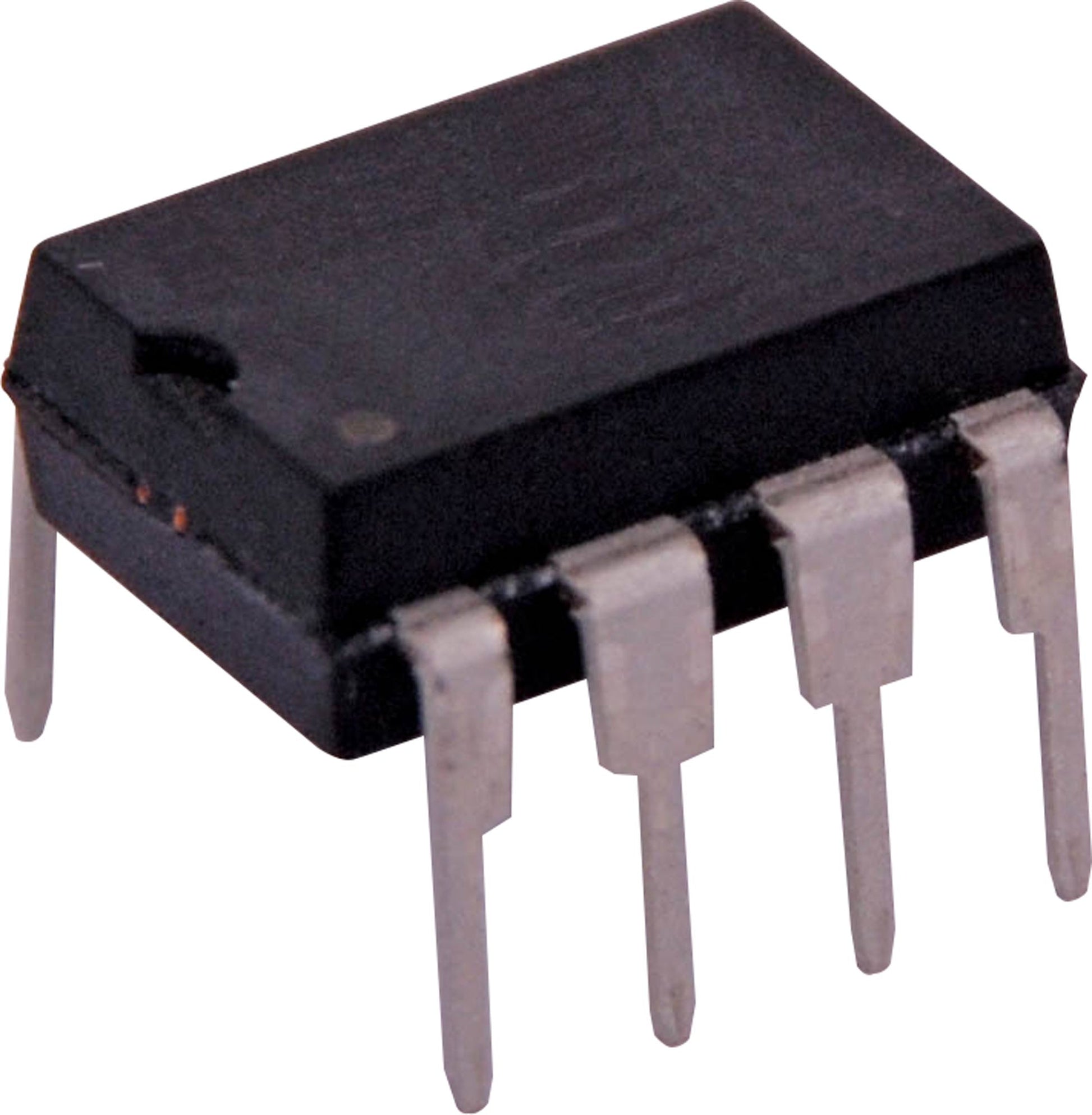

Atmel AVR ATTINY85-20PU 8 Pin Z5105

The Z 5105 is a high-performance, low-power 8-bit AVR RISC-based Microcontroller combines 512B EEPROM, 6 general purpose I/O lines, 32 general purpose working registers, one 8-bit timer/counter with compare modes, one 8-bit high speed timer/counter, USI, internal and external Interrupts, 4-channel 10-bit A/D converter, programmable watchdog timer with internal oscillator, three software selectable power save modes and debugWIRE for on-chip debugging.

The device achieves a throughput of 20 MIPS at 20 MHz and operates between 2.7 to 5.5V. By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, balancing power consumption and processing speed.

Applications
• Building Automation
• Communications & Networking
• Consumer Electronics
• Motor Drive & Control
• Industrial
• Sensing & Instrumentation

Features

• High-performance, Low-power AVR® 8-Bit Microcontroller
• Advanced RISC Architecture
• Non-volatile Program and Data Memories
• debugWIRE On-chip Debug System
• In-system Programmable via SPI Port
• External and Internal Interrupt Sources
• Low-power Idle, ADC Noise Reduction and Power-down Modes
• Enhanced Power-on Reset Circuit
• Programmable Brown-out Detection Circuit
• Internal Calibrated Oscillator
• 0 to 20MHz at 4.5 to 5.5V Speed Grade
• 1MHz, 1.8V, 300µA Active Mode, 0.1µA at 1.8V Power-down Mode Low Power Consumption
