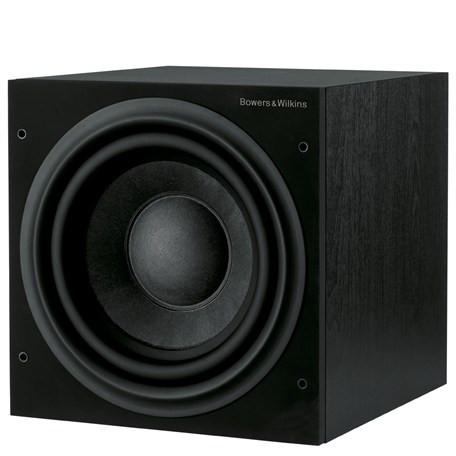

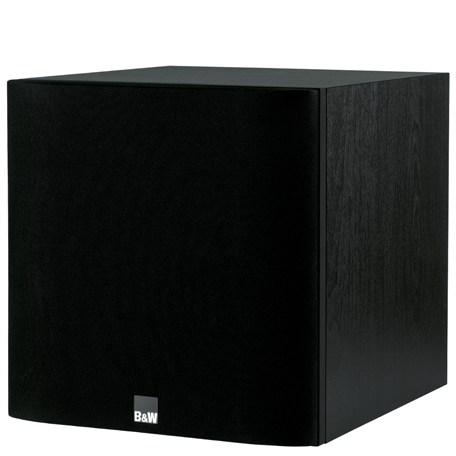

Bowers & Wilkins ASW610 10" 200W Subwoofer FP40878

SKU: 20025236

Colour: Black
Price:
$1,299

The ASW610 subwoofer presents a very happy medium between the more diminutive

 ASW608 and the all-out power of the ASW610XP. Its long-throw 250mm driver allows the ASW610 to move the large volumes of air needed for high-quality low-frequency output, and its audiophile-

standard 200W Class D amplifier keeps the compact unit running cool, even when the music or movie action is whipping up a storm.

In all of the 600 Series subwoofers, the bass driver diaphragms are constructed from a rugged, finely-tuned mix of paper pulp, Kevlar fibres and resin, which provides the stiffness needed to withstand the tremendous physical forces exerted by the voice coil and pressures inside the cabinet.

Ultra-solid construction delivers slamming bass, drum kicks, and special movie effects. Deformation is minimised; bass precision, power and enjoyment are maximised.

Crossover Tuning
Mushrooms
Description Active closed-box subwoofer system
Drive unit íŸ250mm (10 in) paper/Kevlar cone long-throw
Frequency range -6dB at 20Hz and 25/140Hz adjustable (EQ at A)
Frequency response ±3dB 27Hz 40/140Hz adjustable (EQ at A)
Bass Extension -6dB at 20Hz (position A)
-6dB at 25Hz (position B)
-6dB at 30Hz (position C)
Power output: 200W
Rated power consumption: 40W / 0.5W standby
Input impedance: 33kä‹_
Signal / noise: >90dB
Functions: Input level (line in)
Input level (speaker in)
Low-pass filter bypass
Bass extension
Bass roll-off alignment
Auto sense on/standby
Phase switch
Inputs: Line In (RCA Phono)
Speaker in (Binding post)
12v trigger (3.5mm jack)
Low-pass filter
Active 4th-order, variable cut-off frequency
Dimensions Height: 310mm (12.2 in) not including feet
Width: 310mm (12.2 in)
Depth: 375mm (14.8 in) including grille and controls
Net weight 12.5kg (27.6 lb)
Finishes Matte Black
