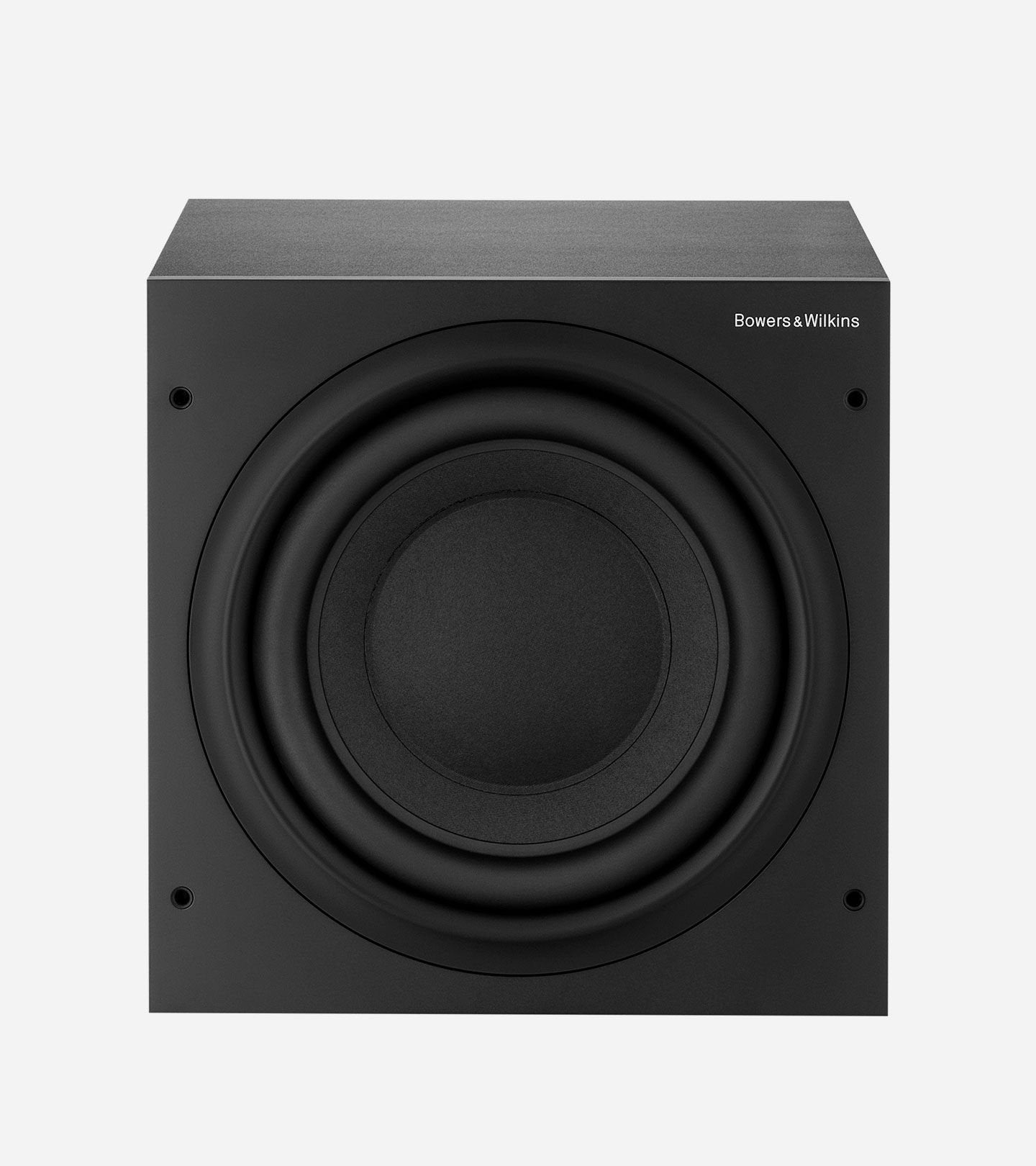

Bowers & Wilkins ASW610XP Active Subwoofer
The ASW610XP, the most powerful of the 600 Series subwoofers, delivers the finishing touch – or finishing thump – to a hi-fi or home theatre system for larger rooms. Serious bass power is developed in a compact cabinet thanks to the unit’s 500W amplifier, long-throw 250mm driver. Equipped with audiophile-standard Class D circuitry, the unit remains cool and efficient under pressure.
In all of the 600 Series subwoofers, the bass driver diaphragms are constructed from a rugged, finely-tuned mix of paper pulp, Kevlar® fibres and resin, which provides the stiffness needed to withstand the tremendous physical forces exerted by the voice coil and pressures inside the cabinet.
Ultra-solid construction delivers slamming bass, drum kicks, and special movie effects. Deformation is minimised; bass precision, power and enjoyment are maximised.
Features
Input level (line in)
Input level (speaker in)
Low-pass filter frequency (line in only)
Low-pass filter bypass
Bass extension
Bass roll-off alignment
Auto sense on / standby
Phase switch
Description
Active closed-box subwoofer system
Drive unit
ø250mm (10 in) paper / Aramid fibre cone long-throw
Frequency range
-6dB at 18Hz and 25 / 140Hz adjustable (EQ at A)
Frequency response
±3dB 25Hz – 40 / 140Hz adjustable (EQ at A)
Bass extension
-6dB at 18Hz (position A)
-6dB at 23Hz (position B)
-6dB at 28Hz (position C)
Amplifier
Power output: 500W
Rated power consumption
98W / 1W standby
Input impedance
33kΩ
Signal / noise
>90dB
Inputs
Line in (RCA Phono)
Speaker in (Binding post)
12v trigger (3.5mm jack)
Low-pass filter
Active 4th-order, variable cut-off frequency
Dimensions
Height: 325mm (12.8in) not including feet or spikes
337mm (13.3in) including feet
353mm (13.9in) including spikes
Width: 325mm (12.8in)
Depth: 348mm (13.68in) not including grilles
375mm (14.8in) including grilles and controls
Net weight
18.65kg (41.12 lb)
Cabinet finishes
Black
White
Grille finishes
Black
Grey
