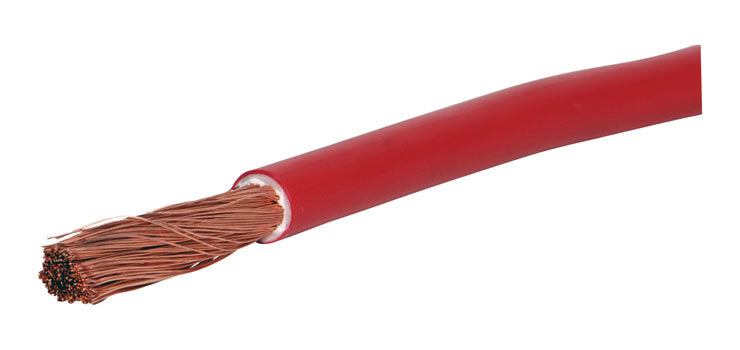

Cable 2AWG 201A Red Power per m W4211A

This high current capacity cable is suitable for connection between battery banks and inverters.

Conductor
Material: Bare Copper
AWG: 32.23mm2 × 1C (2AWG)
Construction: 456/0.30mm±0.01mm
Stranded Diameter: 8.53mm

Jacket
Material: PVC
Average Thickness: 1.235mm
Cable Diameter: 11.0±0.15mm
Jacket Colour: Inside White, Outside Red

Physical and Electrical Characteristics
Rated Voltage: 300V DC
Rated Temperature: 90°C
Rated Current: 201 Amps
Maximum DC Resistance: 0.00057M Ω
Tensile Strength: ≥10.3 Mpa (Insulation and Jacket)
Elongation: ≥100% upward (Insulation)
Dielectric Strength: 2kV/min (Insulation in water)
