Compact Switchmode Laboratory Power Supply MP3800
Compact Switchmode Laboratory Power Supply MP3800
Regular price
$199.00
Regular price
Sale price
$199.00
Unit price
per
Taxes included.
Couldn't load pickup availability

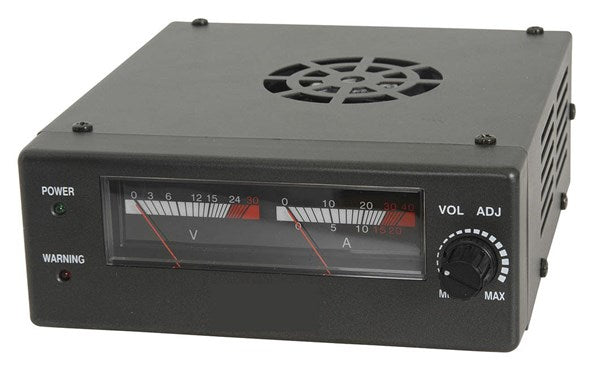

Compact size, high current, variable output and fan cooling make these the ideal power supply for your bench. They are protected against thermal overload and short circuit and will display a warning LED in the event of a fault condition. Current and voltage are displayed on separate backlit analogue meters.
Two models available:
MP-3800 Compact Switchmode Lab Power Supply 0 - 24V
Current output: Max 17A, 6A continuous at 24VDC - refer User Manual specifications
Specifications
| AC Voltage rating : 230V |
| AC Frequency : 50Hz |
| DC current rating : 15A |
| Width : 148mm |
| Height : 62mm |
| Depth : 162mm |
| Mains Voltage Range : 230V |
| Frequency : 50Hz |
| Rated for AU Mains : true |
| Rated for US Mains : false |
| Auto-select mains voltage : false |
| Mains Item connection : Standard IEC320 (C13/C14) |
| Mains lead included : true |
| Packaged Volume : 2.8l |
| Packaged Weight : 1.5kg |
| Packaged Length : 20.5cm |
| Packaged Width : 19.5cm |
| Packaged Height : 7cm |
| Type of Power Supply : Laboratory |
| Regulation Type : SMPS |
| Voltage Display : true |
| Current Display : true |

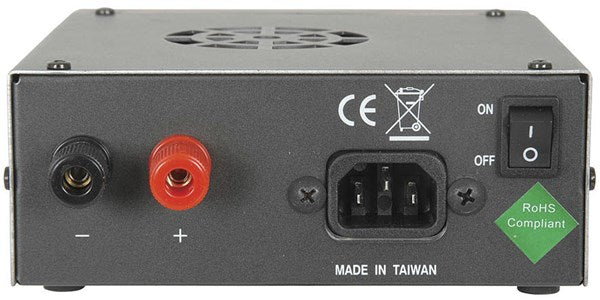

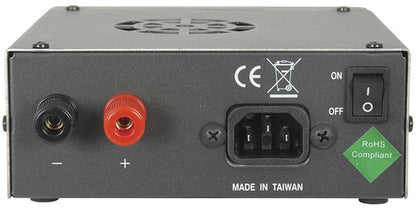

| Output Connection : Banana 4mm (standard)Binding Post Terminals |
| Number of Outputs : 1pc |
| Ripple Voltage : 9mV |
