Cooling Fan Sleeve Bearing 80mm 24VDC F1025

SKU: F1025

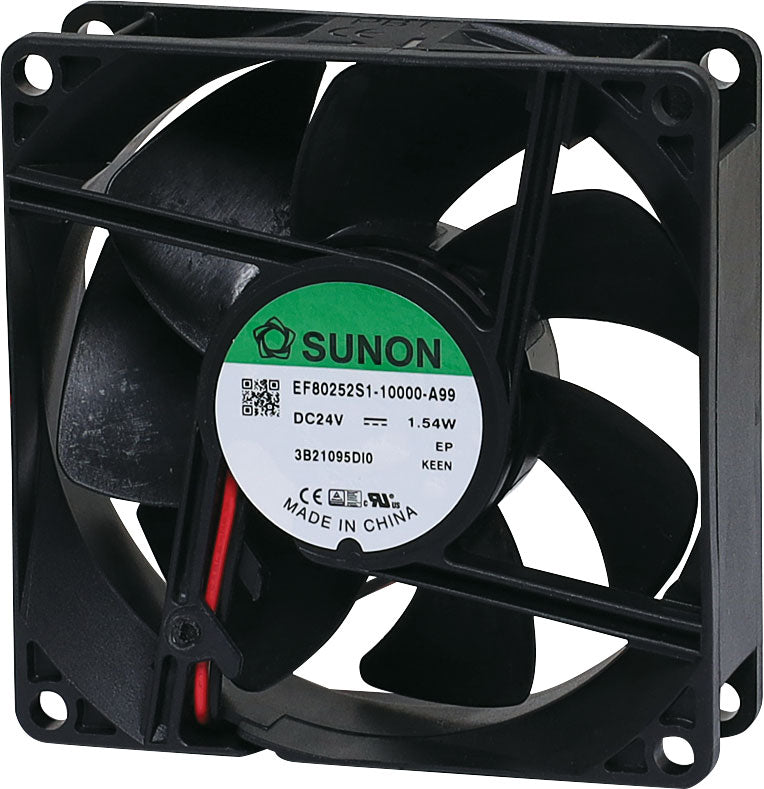

A 24V DC 80mm Sunon Sleeve Bearing Cooling Fan (#EE80252S1-0000-A99) with thermoplastic frame. Designed for long-life and minimal noise operation. Sunon fans are manufactured to a very high standard and hold CSA and UL listings. Altronics has been a Sunon distributor for many years and have found them to be of excellent overall quality and reliability.

Note: Other models are available for your specific OEM requirements, please contact us for details.

Data Sheet

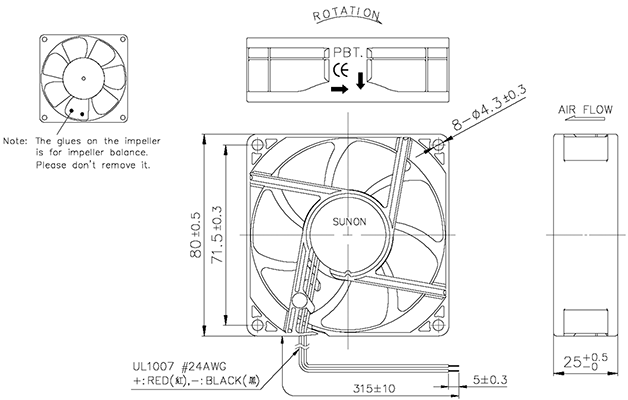

Mechanical Characteristics
  • Motor Design: Brushless DC Motor
  • Bearing System: Lubricated sleeve bearing system
  • Frame Material: Thermoplastic PBT of UL 94V-0
  • Blade Material: Thermoplastic PBT of UL 94V-0
  • Direction of Rotation: Counter clockwise viewed from the front of the fan
  • Input Power: 4.1W
  • Mounting Holes: 8x 4.3mm holes
  • Weight: 75g
  • Dimensions: 80 x 80 x 25mm
Electrical Characteristics
  • Rated Voltage: 24V DC
  • Rated Current: 55mA (64mA max)
  • Rated Power Consumption: 1.32W (1.54W max)
  • Safety Power Consumption: 1.54W
  • Operating Voltage Range: 8~27.6V DC
  • Starting Voltage: 8V DC (25°C Power On/Off)
  • Operating Temperature: -10 - +70°C
  • Storage Temperature: -40 - +70°C
Performance Characteristics
  • Rated Speed: 3200 RPM ± 10% at 24V DC
  • Air Flow: 41.0 CFM (3.33 CFM min)
  • Static Pressure: 0.18 Inch-H2O (0.13 Inch-H2O min)
  • Acoustic Noise: 33.0dB (A) (37.2dB max)
  • Insulation Class: UL Class A
  • Insulation Resistance: 10MΩ @ 500V DC between internal stator and lead wire (+)
  • Dielectric Strength: 500V AC for 1 minute, 600V AC for 2 seconds between housing and lead wire (+)
  • Life Expectancy: 35,000 hours at 40°C, 65% RH, 90% CL
  • Protection: Automatic Restart
