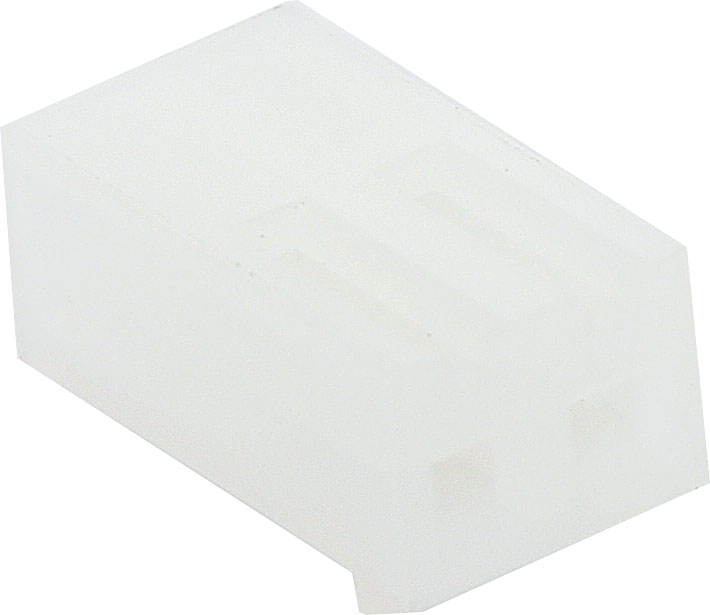

Crimp Housing 2 Way 3.96mm P5642

2 Way.
Header Plug.
3.96mm Spacing.
Rated at 7A.

Crimp pins sold separately.



Datasheet

Specifications

Material
Housing: Nylon 66 flame retardant UL94V-2
Contacts: Tin plated brass
Recommended wire: 18AWG -24AWG

Electrical
Current rating: 7A
Insulator resistance: 5000MΩ min. @ 5000V AC
Contact resistance: 20mΩ max @ 100mA DC.
Operating temperature: -25ºC - +85ºC
