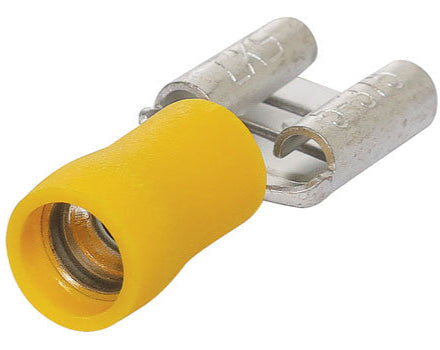

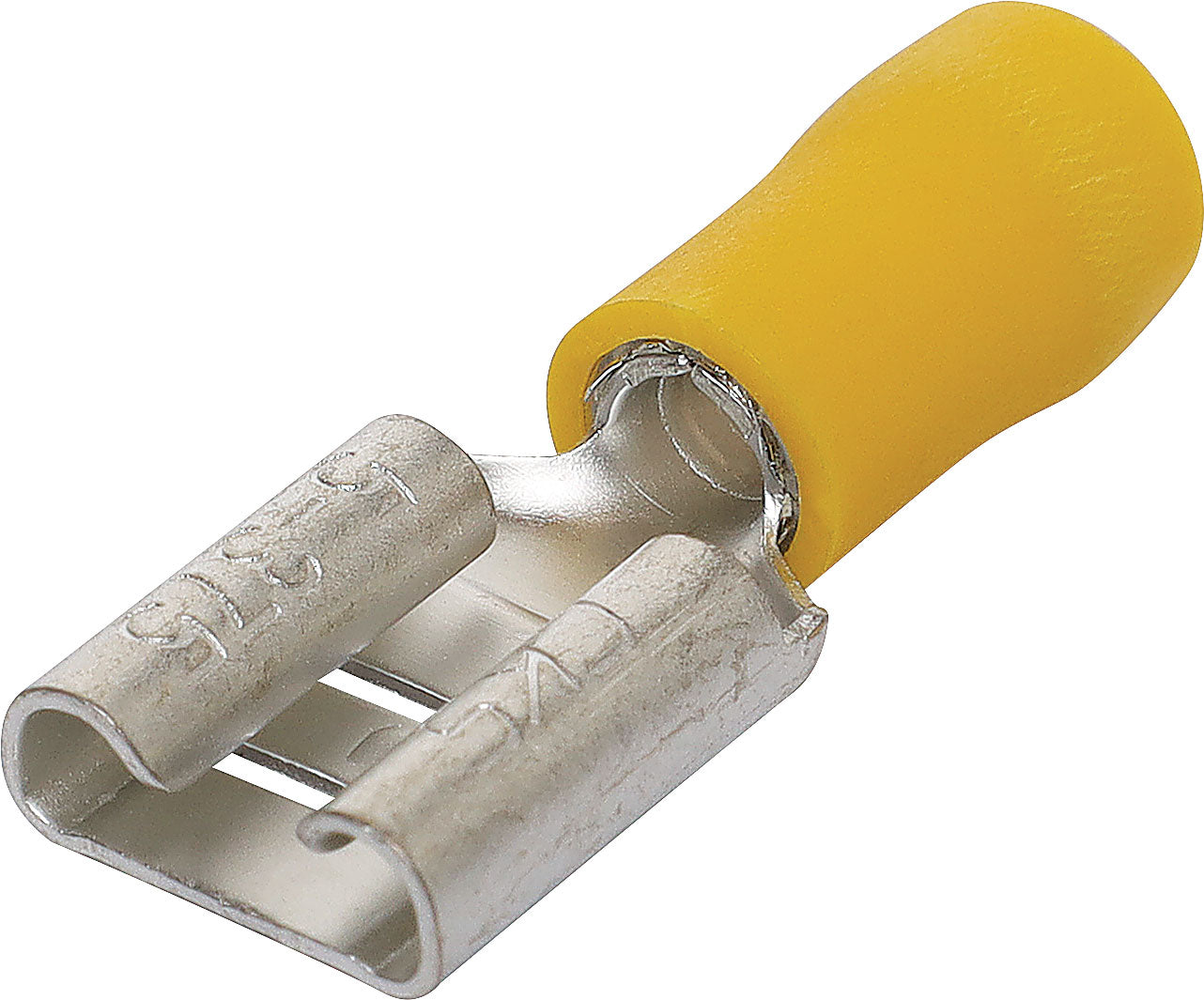

Crimps & Lugs Yellow 9.2mm Female Half Insulated Spade Crimp Pk 10 H1820A

Spade type with double crimp

Wire: 4-6mm²
Stud: 9.2mm
Max. voltage: 300V

What Is A Double Crimp?
A double crimp features two crimping surfaces. Firstly, an inner crimping ring which is directly attached to the spade lug, this crimps to the exposed cable core. Secondly the outer crimping ring secures both the cable core and outer sheath to the crimp terminal. This results is a vastly more reliable connection.
