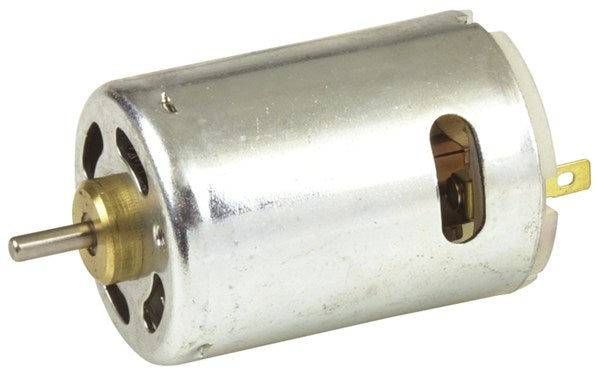

DC Electric Motor 12V 6,500 RPM YM2718
DC Electric Motor 12V 6,500 RPM YM2718
Regular price
$21.95
Regular price
Sale price
$21.95
Unit price
per
Taxes included.
Couldn't load pickup availability
- Stall Torque : 1864 grams per cm
- Stall Current: 23 Amps
- Max power output: 62. Watts
- Max power current: 11.344 amps
- Max power speed: 6500 RPM
Dimensions:
Mounting thread dia: 3mm
Specifications
| Length : 71mm |
| Diameter : 35.8mm |
| DC Voltage : 12V |
| Packaged Volume : 0.13l |
| Packaged Weight : 0.15kg |
| Packaged Length : 8cm |
| Packaged Width : 4cm |
| Packaged Height : 4cm |
| Motor Type : High Power |
| Motor Nominal Voltage : 12V |
| No load current : 0.67A |
| No load RPM : 13000RPM |
| Max efficiency : 65% |
| Max efficiency power : 30.7W |
| Max efficiency RPM : 11200RPM |
| Maximum efficiency torque : 267g.cm |
| Max. efficiency current : 3.9A |
| Shaft diameter : 3.18mm |
| Shaft length : 9.5mm |
| Length : 9.5mm |
| Diameter : 3.18mm |
