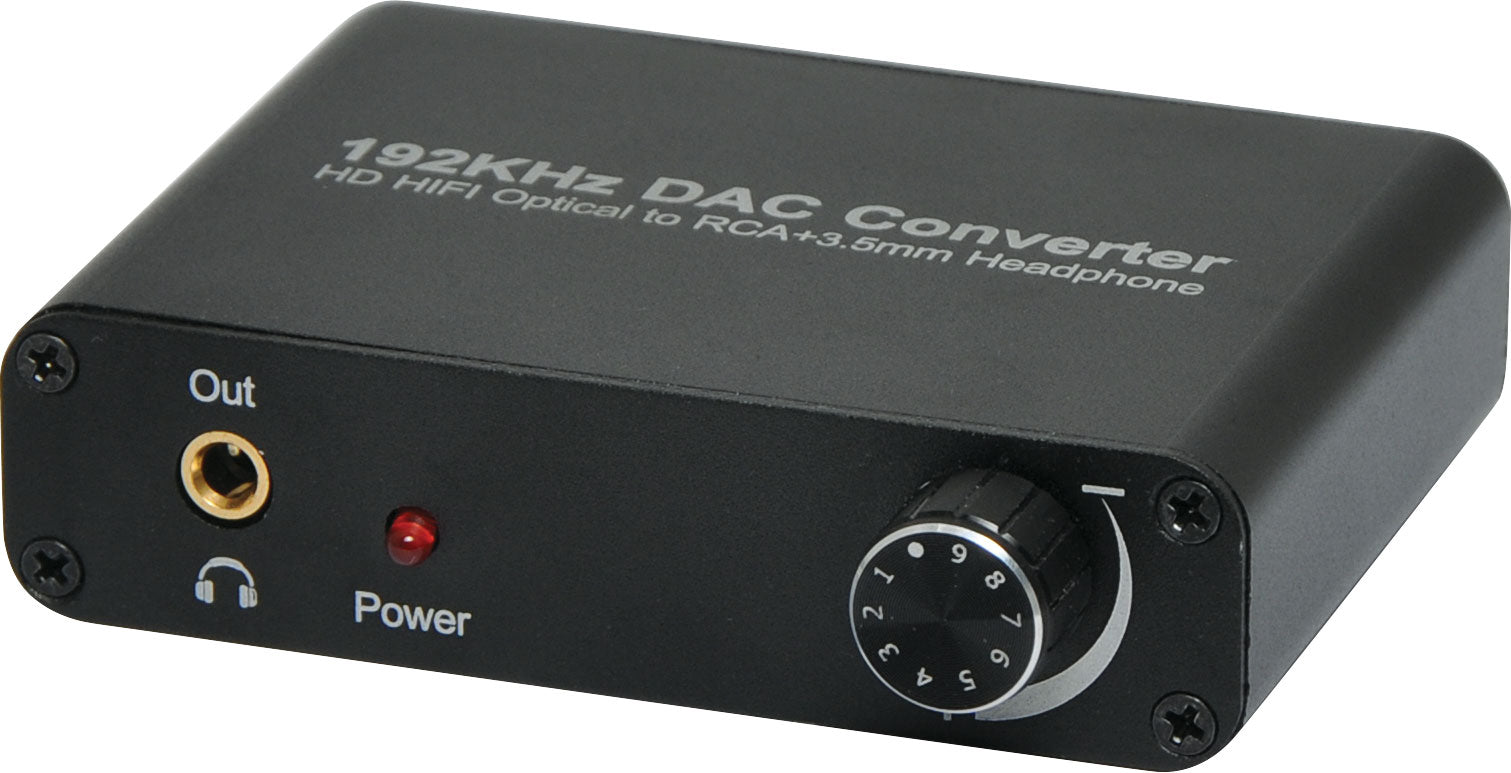

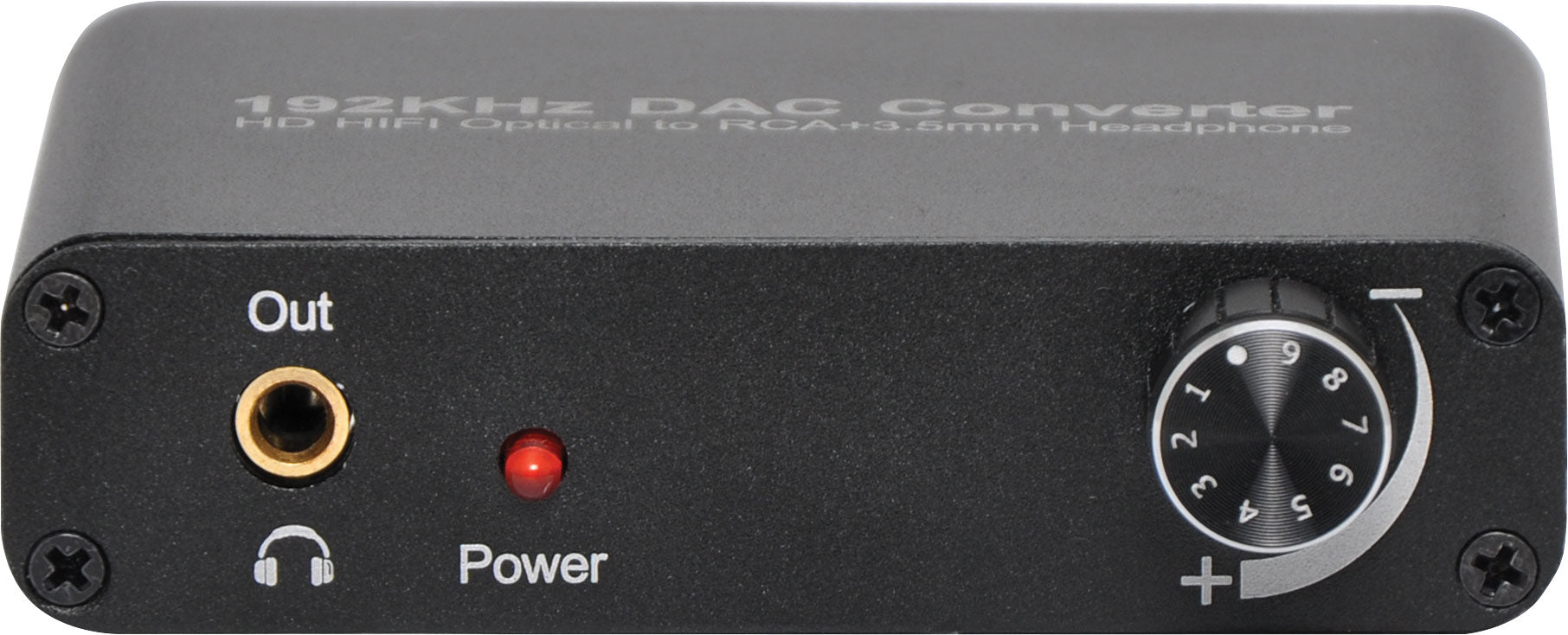

Digital Audio Converter 5.1CH A3195A

SKU: 9321758236390

Price:
$59.95

This Audio decoder can auto convert optical/coaxial channel (Support LPCM/PCM/RAW) input to 2.0 channel analog audio output, and supports decoding Dolby AC-3/DTS (included 5.1 RAW digital audio streaming). Compatible with the following network players; HDTV, Blu-ray DVD, PS3, XBOX 360, DVD, DM500S, DM800HD, etc. Ideal for homes, schools, concert halls, cinemas and other public spaces that wish to enjoy the effect of DTS or Dolby. Dimensions: 81.7 x 78 x 21.2 mm

Included in Box
1x Decoder
1x Micro USB Power Cable
1x User Manual

Please Note: A USB power supply is required. We recommend our M8861B USB wall charger (see accessories below)

Features

  • Built-in high performance RTOS operating system and
  • audio decoder chip; supports DTS/AC-3
  • Super fast start time about 3 seconds
  • Auto Switch between optical and coaxial channel input
  • Auto decode AC-3/DTS (LPCM/PCM/RAW) input signal without any action
  • High compatibility
  • Small size
  • Metal case, Anti-interference
  • Headphone port output
  • Supports volume adjustment

Specifications

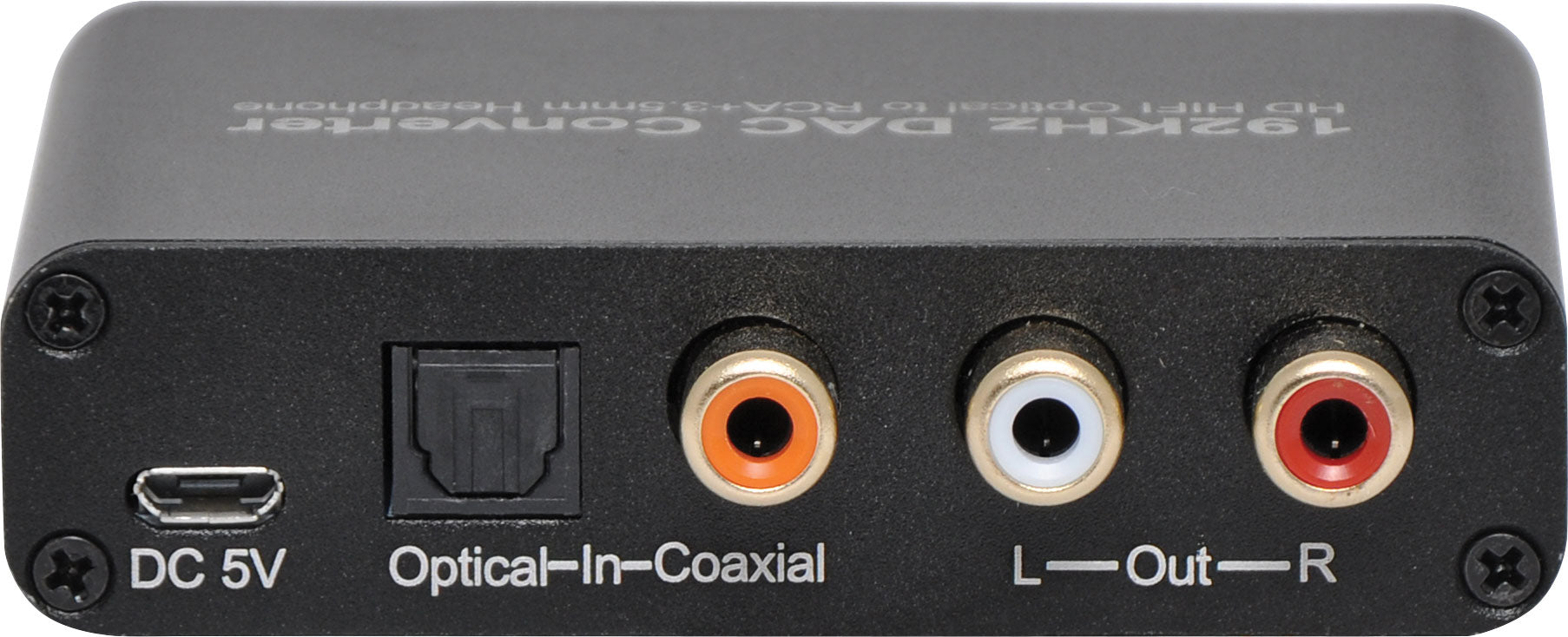

  • Input:1 SPDIF Optical, 1 Coaxial
  • Output: L-OUT-R; 3.5mm Headphone port
  • Supported Audio formats: MP3, AC3, DTS, WAV, WMA, AAC, ALAC, FLAC, APE, OGG, M4A
  • Signal Noise ratio: 120dB
  • Stereo Isolation: 80dB (1kHz)
  • Channel Unbalance: 0dB
  • Sampling Rate: 32~192KHz
  • Bit Rate: 16~24 Bit
  • Response Frequency: 20Hz~20KHz +/-0.7dB
  • THD: 20Hz~20KHz 0.25-0.065%
  • THD+N: 1kHz 0.15%
  • Analog Output Level: 2.2V
  • Shell Dimension: 81.7 x 78 x 21.2mm
  • Weight: 110g
  • Ports: 1x Optical, 1x earphone jack, 1x L/R, 1x Optical
  • Working Voltage: 5V DC
  • Max power current: 200mA
  • Working temperature: 0-70°C
  • Working Humidity: 10%-80% RH (non-condensing)
  • Storage Temperature: -10-80°C
  • Storage Humidity: 5%%-90% RH (non-condensing)
