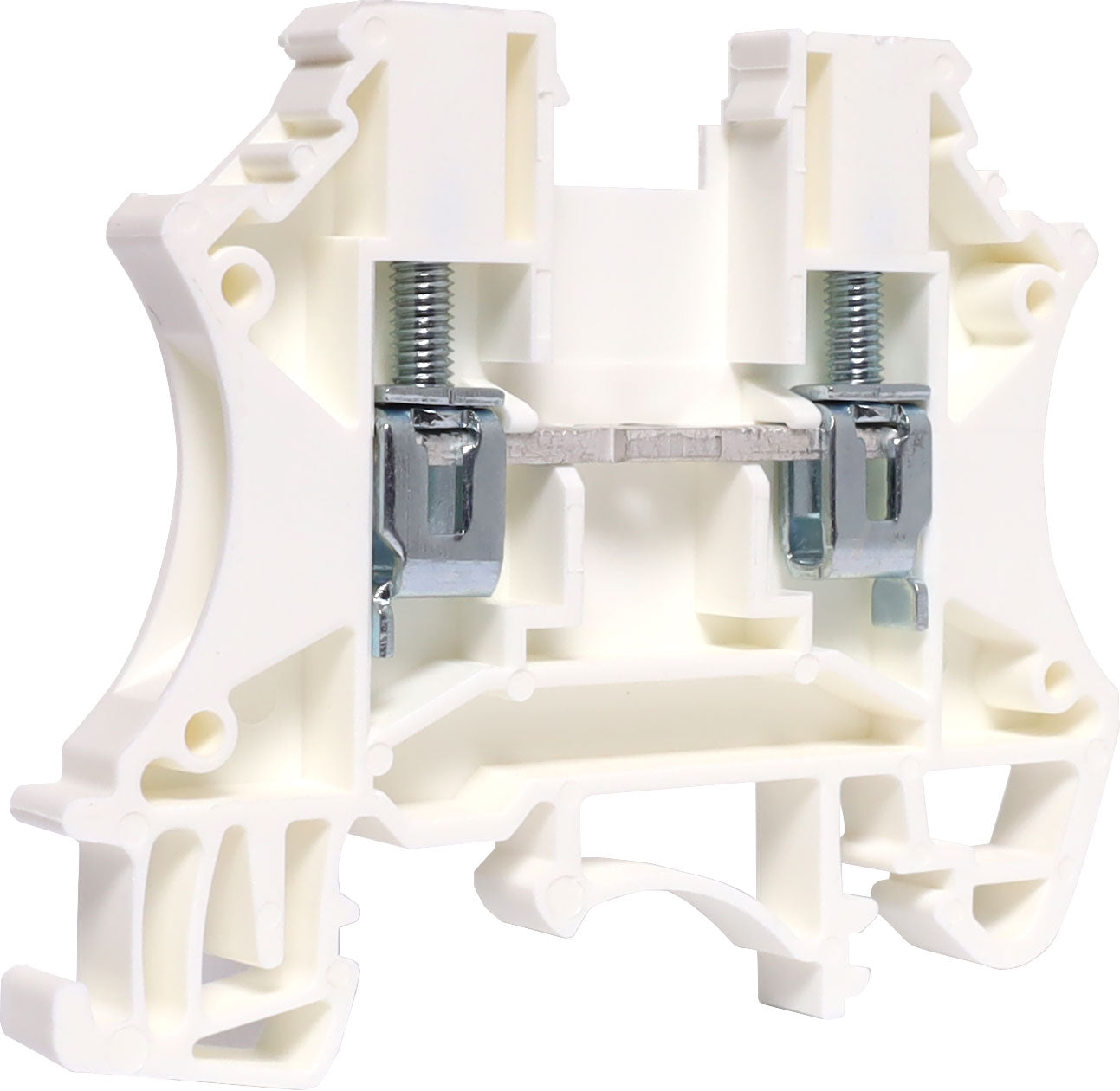

DIN Rail Terminal 20A 2.5mm White P2394
DIN Rail Terminal 20A 2.5mm White P2394
Regular price
$2.90
Regular price
Sale price
$2.90
Unit price
per
Taxes included.
Couldn't load pickup availability
Designed to be ganged together to form as many poles as required to suit your application. Suitable for 2.5mm top hat and asymmetrical “G” Type DIN rail mounts.
600V rated. White.
Specifications
General
- Category: Feed through terminal blocks
- Colour: White
- Connection method: Screw connection
- Type of locking: Rail mounting
- Dimensions: Length (mm): 40.7L x 5.1W x 39.6Hmm
- Number of positions: ≥1P
- Level: Single level
- Connection points: 2
Material information
- Insulation material: PA
- Insulation material group: I
- Flame retardant rating , compliant with UL94: V0
- Insulation resistance: ≥500MΩ at DC 500V
