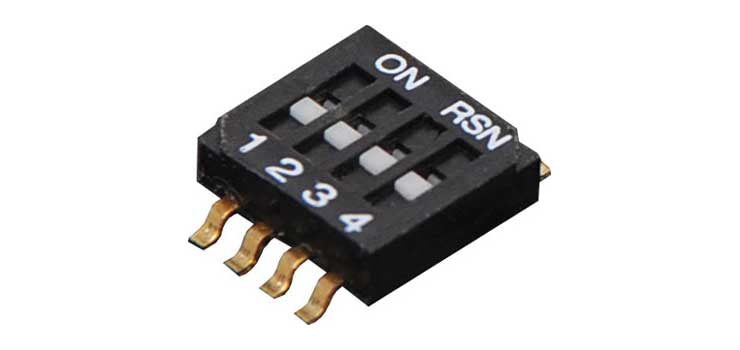

DIP Switch 4 Way Half Pitch SMD S3104

Gold plated contacts and pins. Durable self wiping
contacts.

Rating: 50V dc 100mA continuous, 24V dc 25mA
Switching contact resistance: 50mΩ max. initially
Insulation resistance: 100MΩ min
Operation life: 1000 cycles per switch
Dielectric breakdown voltage: 500V ac min
Operation force: 500gf max
Terminals: Gold plated
