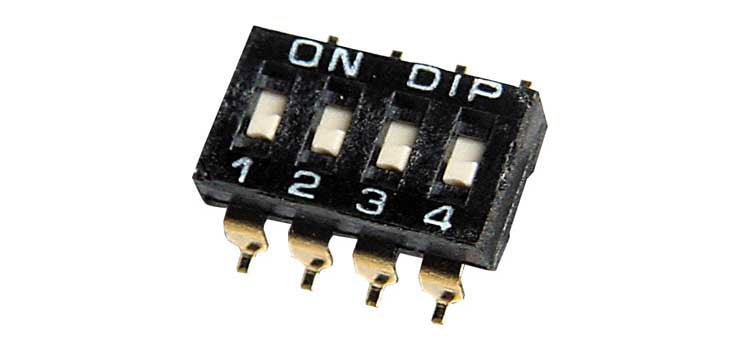

DIP Switch 4 Way SMD S3084
DIP Switch 4 Way SMD S3084
Regular price
$2.90
Regular price
Sale price
$2.90
Unit price
per
Taxes included.
Couldn't load pickup availability
Gold plated contacts and pins. Durable self wiping
contacts.
Rating: 50V DC 100mA continuous, 24V DC 25mA switching
Contact resistance: 50mž max. initially @ 100mA
100mž max. after life test
Insulation resistance: 100Mž min.
Operation life: 2000 operations per switch
Capacitance: 5pF max. between adjacent terminals
Dielectric breakdown voltage: 500V DC min.
Operation force: 1000gf max
Terminals: Gold plated
