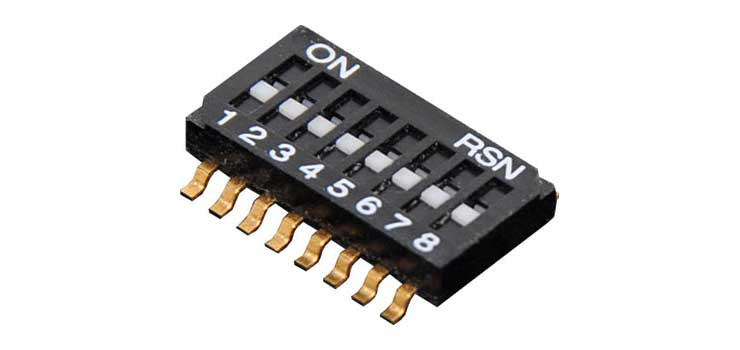

DIP Switch 8 Way Half Pitch SMD S3108

Gold plated contacts and pins. Durable self wiping contacts.

Dimensions

Rating: 50V dc 100mA continuous, 24V dc 25mA
Switching Contact Resistance: 50mΩ max, initially
Insulation Resistance: 100MΩ min
Operation Life: 1000 cycles per switch
Dielectric Breakdown Voltage: 500V AC min
Operation Force: 500gf max
Terminals: Gold plated
