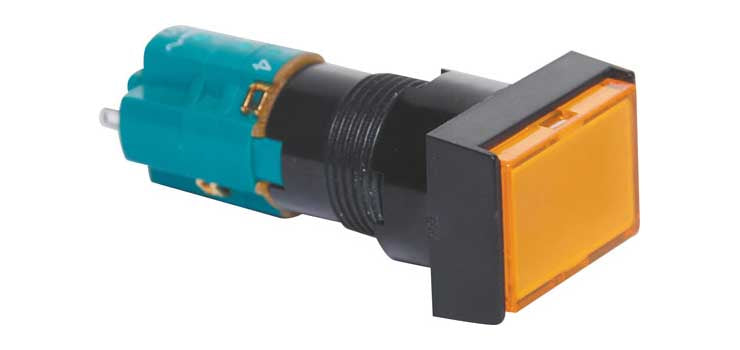

DPST Alt. Orange Illuminated Solder Tail Pushbutton Switch S1724

DPST Alt. Orange Illuminated Solder Tail Pushbutton Switch S1724

Regular price $16.50
Regular price Sale price $16.50
Sale Sold out
Taxes included.

Alternate action type illuminated switch incorporating a very positive, audible and tactile feel when operated. Includes provision for a globe. In-built diffuser can be directly engraved. Alternatively a clear printed label can be placed behind the coloured cover. Single hole mounting.

Colour: Orange
Type: DPST
Action: Alternate
Switch System: 1 NO & 1 NC contact blocks
Body Material: High grade thermoplastic
Operating Travel: 3.0mm
Actuating Force: 150gm
Mech. Lifetime: 1 Million operations min
Electrical Lifetime: 100,000 operations min.
Electrical Rating: 250V AC 4A
Dielectric Strength: 1500V AC, 50Hz, 1 minute
Insulation Resistance: 1000MΩ min @ 500V DC
Panel Thickness: 8mm maximum
Mounting Hole Diameter: 16mm
