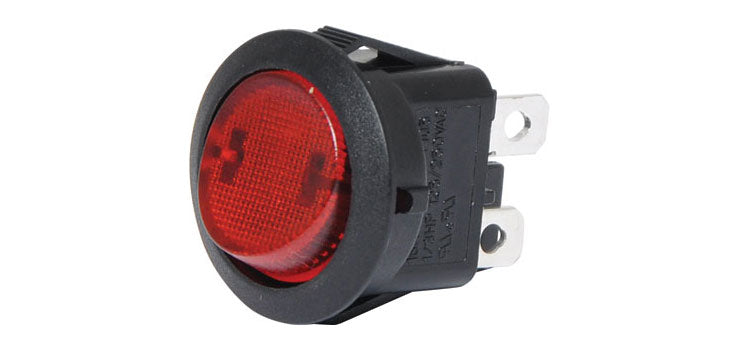

DPST Illuminated 10A Rocker Switch S3186

A DPST illuminated rocker switch with red neon. Rated to 10A @ 250V AC for use with both low voltage and high voltage mains circuits.

Contact Rating: 10A @ 250V AC
Illumination: Neon
Panel Thickness: 2.5mm max.
Electrical Life: 10,000 cycles
Mechanical Life: 100,000 cycles
Contact Resistance: 30mΩ max.
Insulation Resistance: >100MΩ @ 500V DC
Dielectric Strength: 1500V AC
