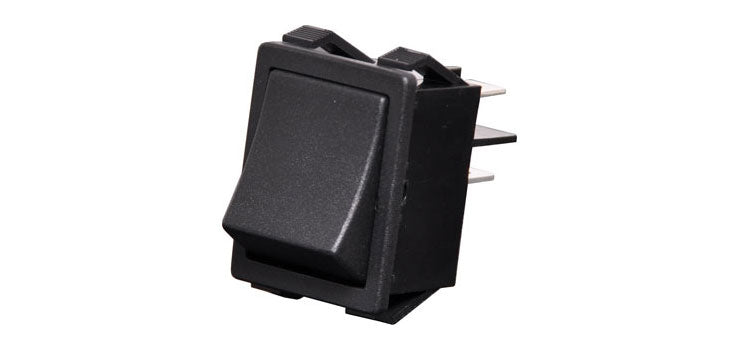

DPST Momentary On/Off Heavy Duty Rockers S3241

A heavy duty DPDT momentary ON/OFF panel mount rocker switch. The switch configuration is momentary one way, returning to centre-off after release. Rated for 16A @ 250V AC for use with mains powered equipment. Large actuator and heavy duty design is ideal for industrial use.

Electrical Life: 10,000 cycles
Panel Thickness: 0.7-3mm
Panel Cutout: 22.2 x 30.4mm
Mechanical Life: 30,000 cycles
Contact Resistance: 1000MΩ
Dielectric Strength: >1500V AC 1 minute
