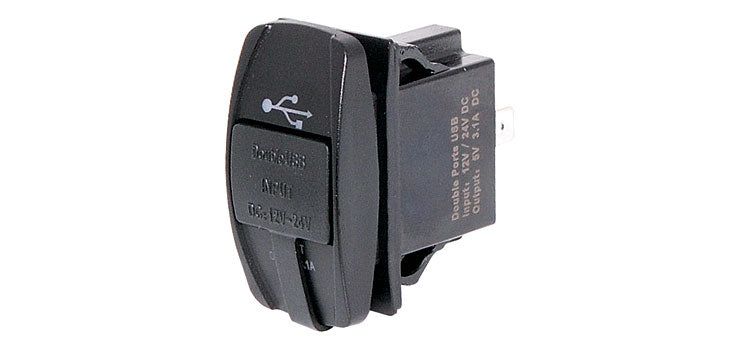

Connects directly to 12-24V with 6.3mm spade terminals. Fitted with rubber cap to prevent moisture and dust ingress. 3.1A DC max current (shared between the two USB ports). IP66 rated when fitted with cap. 6.3mm spade lug connection.
Panel Cutout: 21 x 38.5mm approx. Will vary with panel thickness.
NOTE: Charging sockets only. Not suitable for data
