ESP32 WiFi-Bluetooth Module & Interface Board Z6385A

SKU: 9321758238592

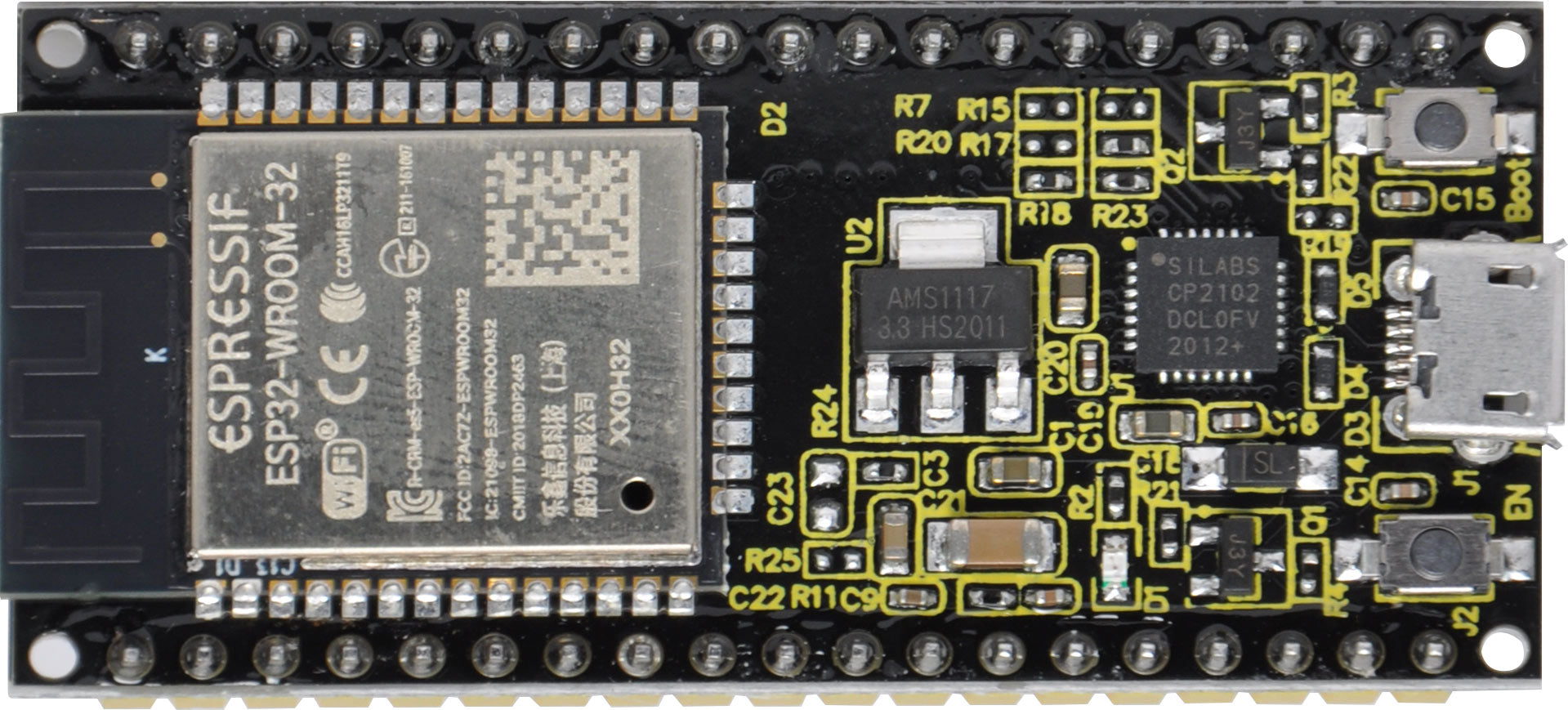

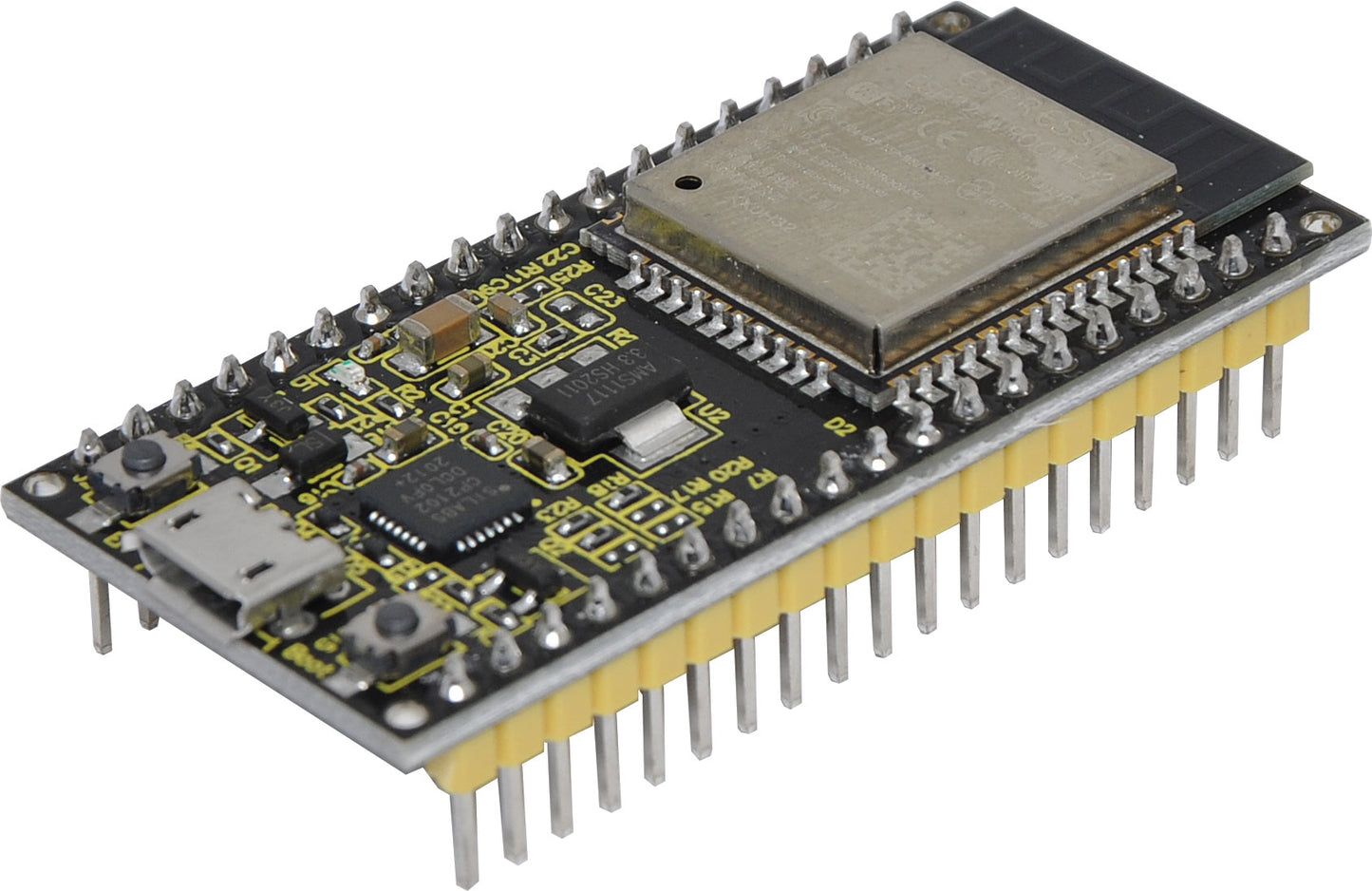

This ESP32 core board is a Mini development board based on the ESP-WROOM-32 module. The board has I/O ports to pin headers of 2.54mm pitch. These provide an easy way of connecting peripherals according to the users needs. When using the board to develop and debug, both sides of the standard pin headers can make operation simpler.

The module is the industries leading integrated WiFi + Bluetooth solution with less than 10 external components. It integrates antenna switch, RF balun, power amplifiers, low noise amplifiers, filters and power management modules. At the same time, it also integrates with TSMC's low-power 40nm technology, so that power performance and RF performance are safe and reliable, easy to expand to a variety of applications. Size: 55 x 26mm

Microcontroller: ESP-WROOM-32 module
USB to Serial Port Chip: CP2102-GMR
Operating Voltage: DC 5V
Operating Current: 80mA (average)
Current Supply: 500mA (Minimum)
Operating Temperature Range: -40℃ ~ +85℃
WiFi mode: Station/SoftAP/SoftAP+Station/P2P
WiFi protocol: 802.11 b/g/n/e/i (802.11n, speed up to 150 Mbps
WiFi frequency range: 2.4 GHz ~ 2.5 GHz
Bluetooth protocol: conform to Bluetooth v4.2 BR/EDR and BLE standards
Dimensions: 55mm*26mm*13mm
Weight: 9.3g
