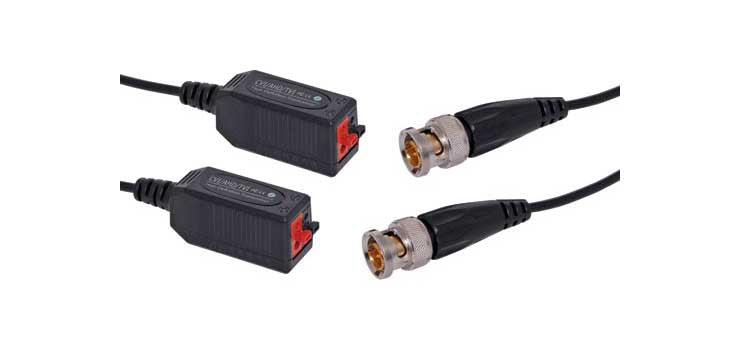

Extender Composite UTP Pair S9244B

Allows the transmission of a signal from a camera for up to 250m over standard Cat 5e UTP cable. No power required. Video only transmission up to 1080p. Sold in a pair.

Suitable for use with S 9280 16 Channel UTP receiver

Frequency Response: DC to 80Mhz
Attenuation: 0.5dB
CMRR: 60dB
Surge Protection: 4KV, ESD: 8KV
Connectors: Male BNC and "Press-Fit" terminal blocks
Impedance: BNC 75ohms, Terminal 100ohms
Working temperature: -10°C to 70°C
Storage temperature: -30°C to 70°C
Humidity: 0 to 95%
Dimensions: 39 x 17 x 19mm (excluding connectors)
Material: ABS Plastic
