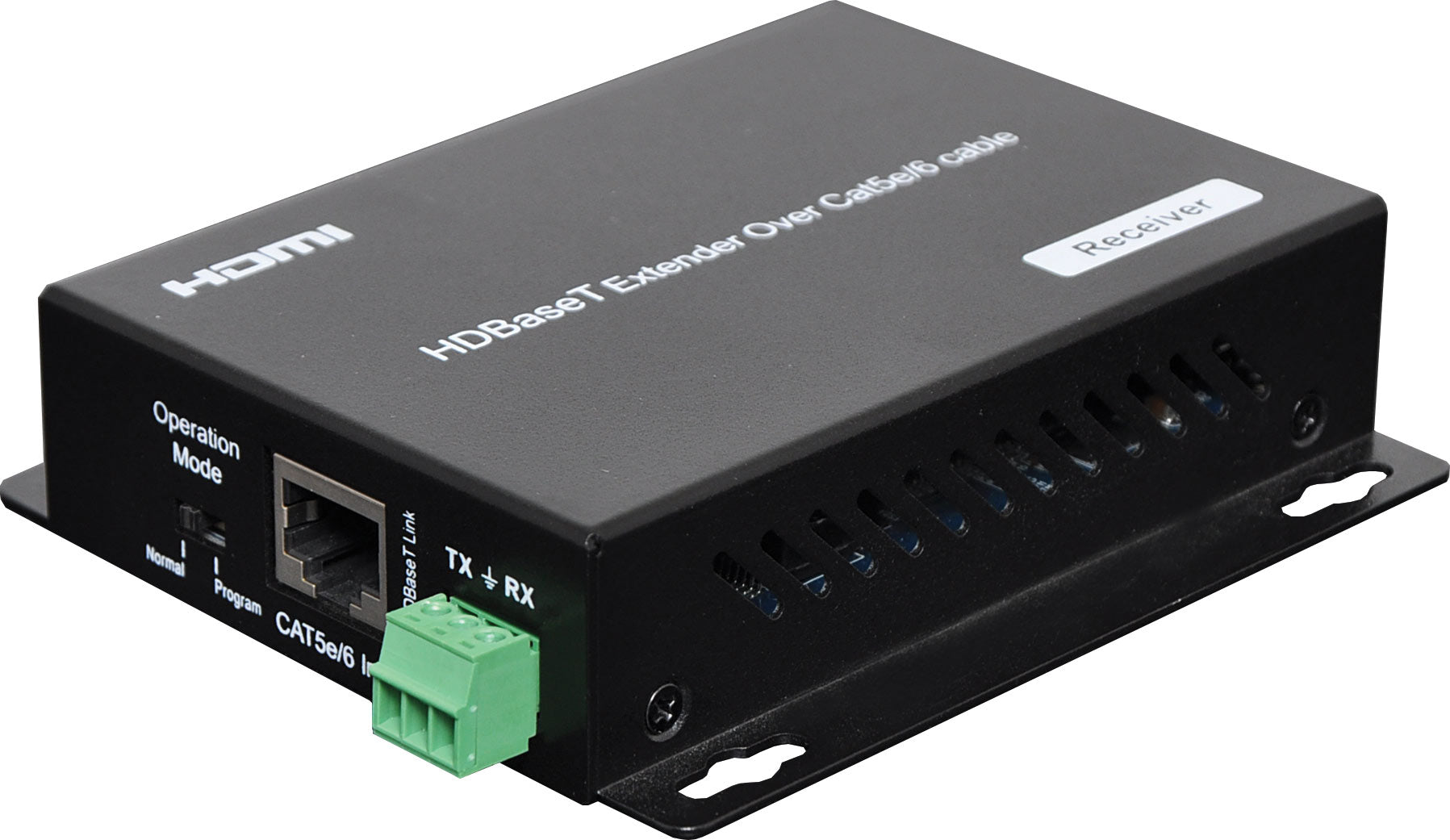

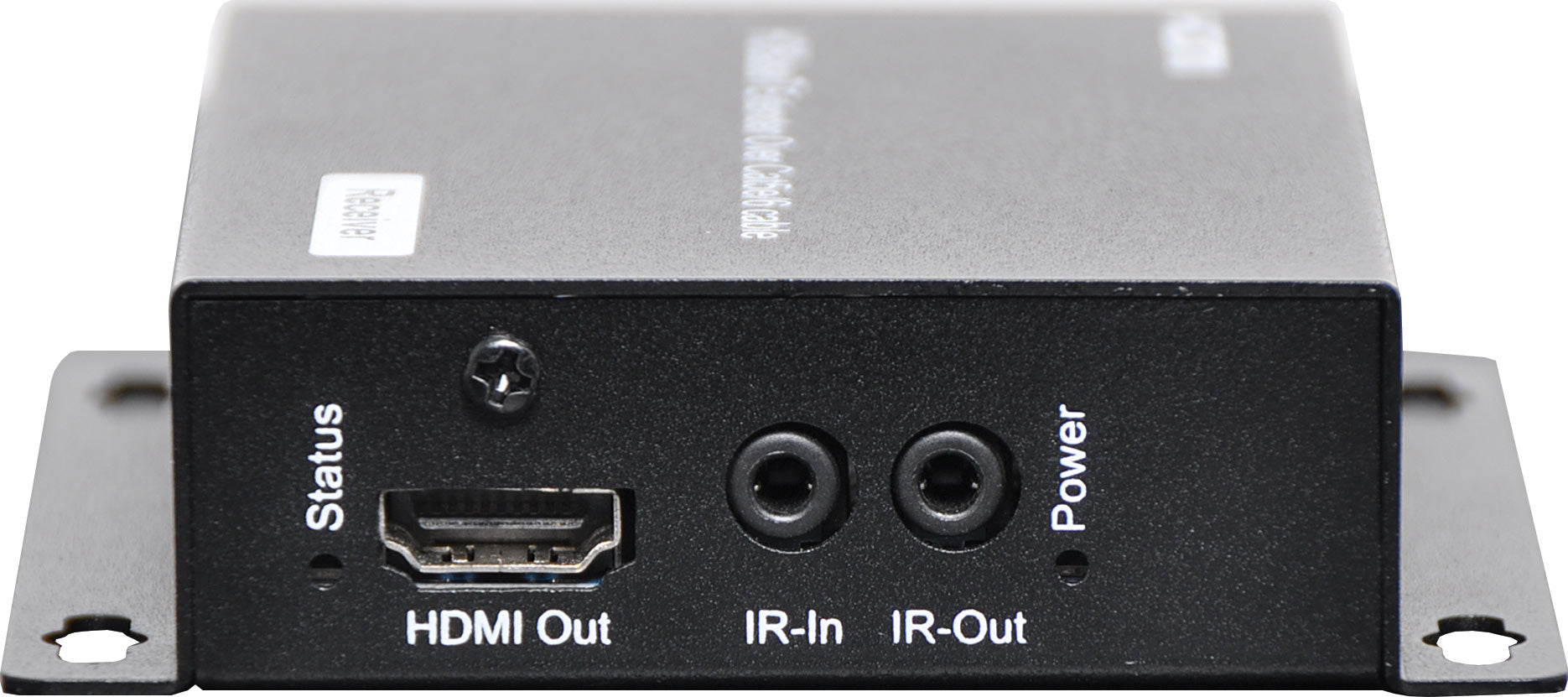

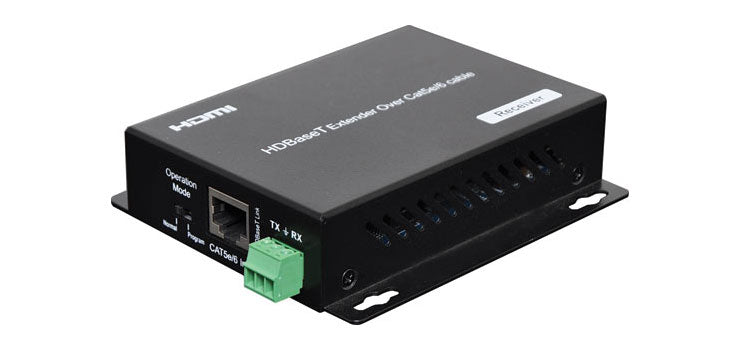

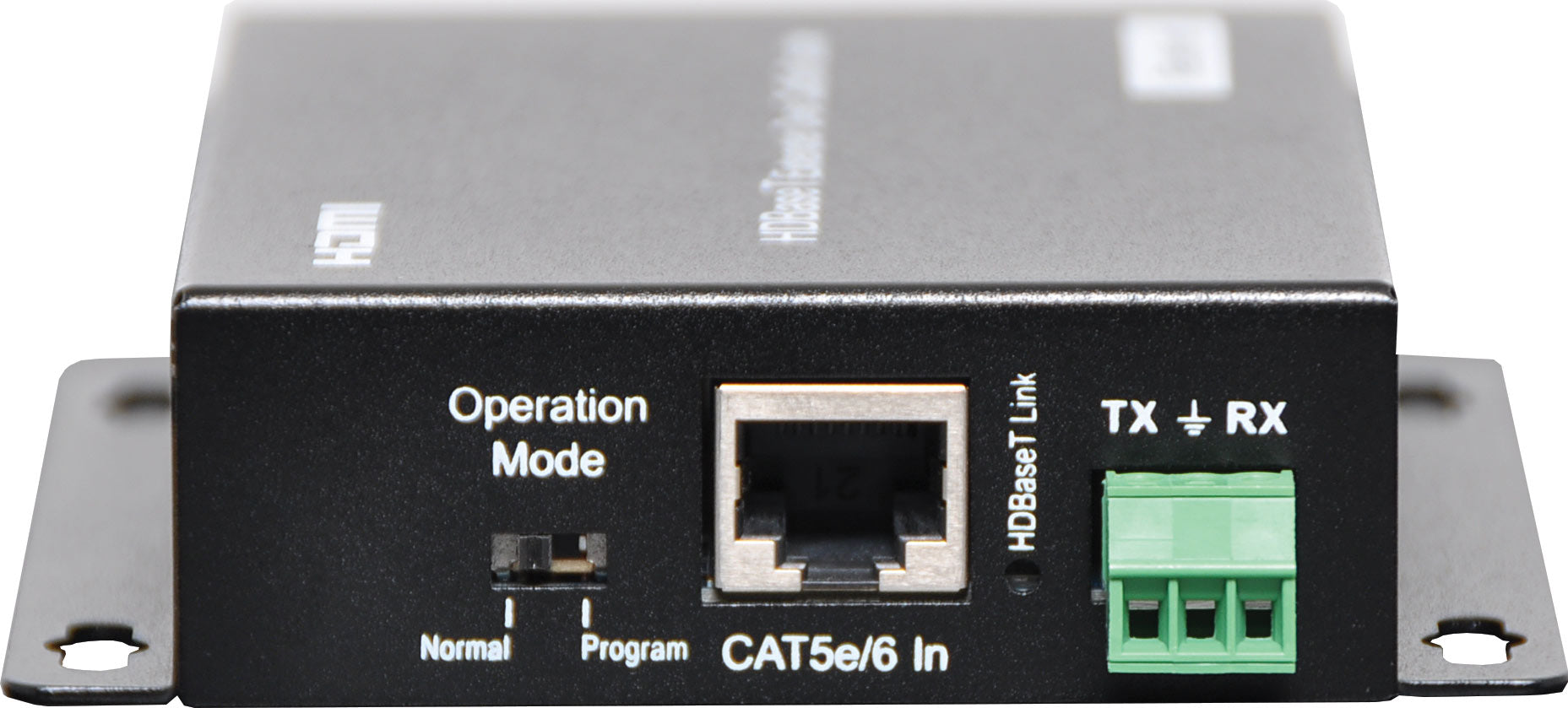

HDMI HD BaseT 4K Balun Matrix Receiver A3528A

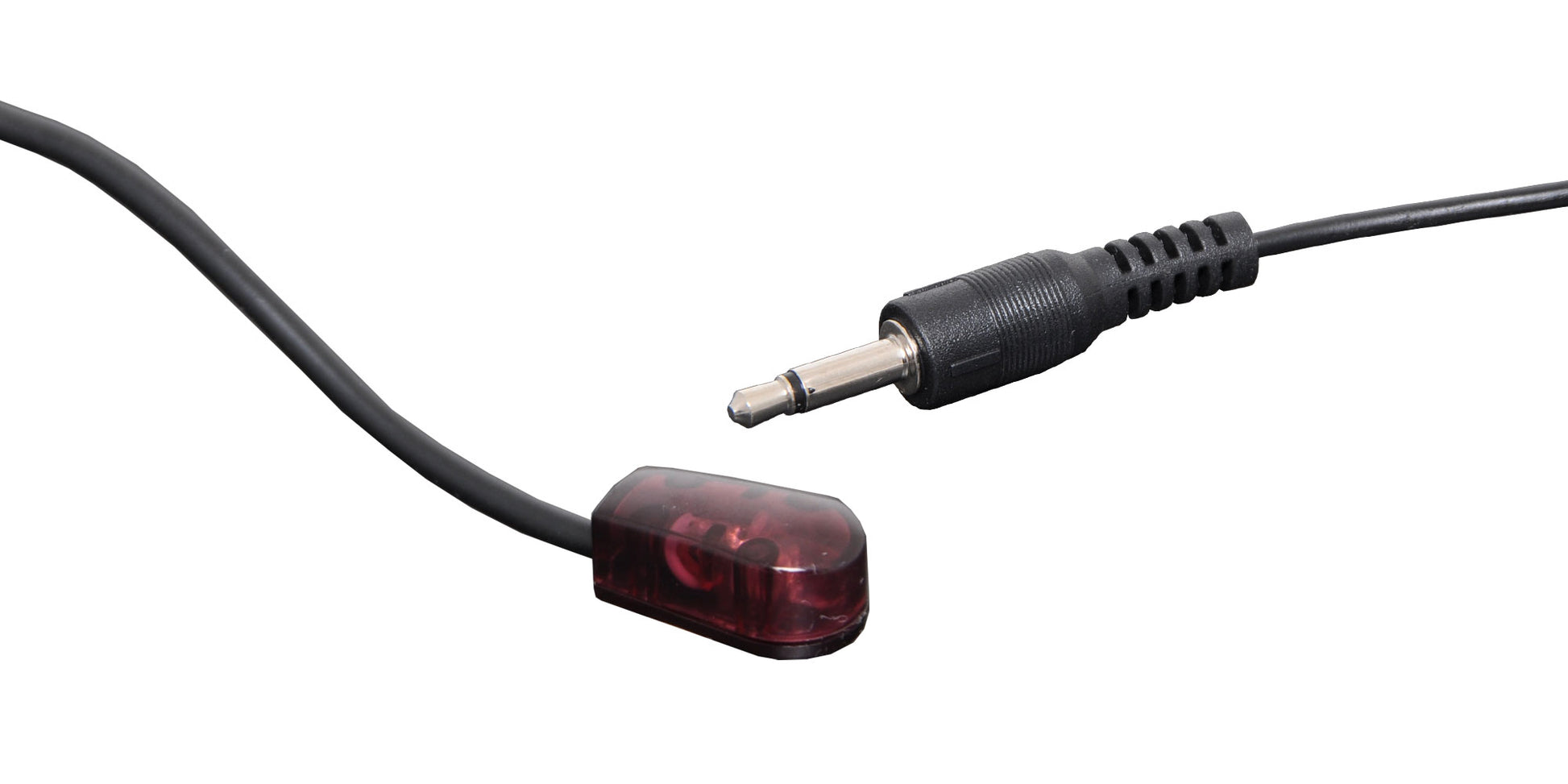

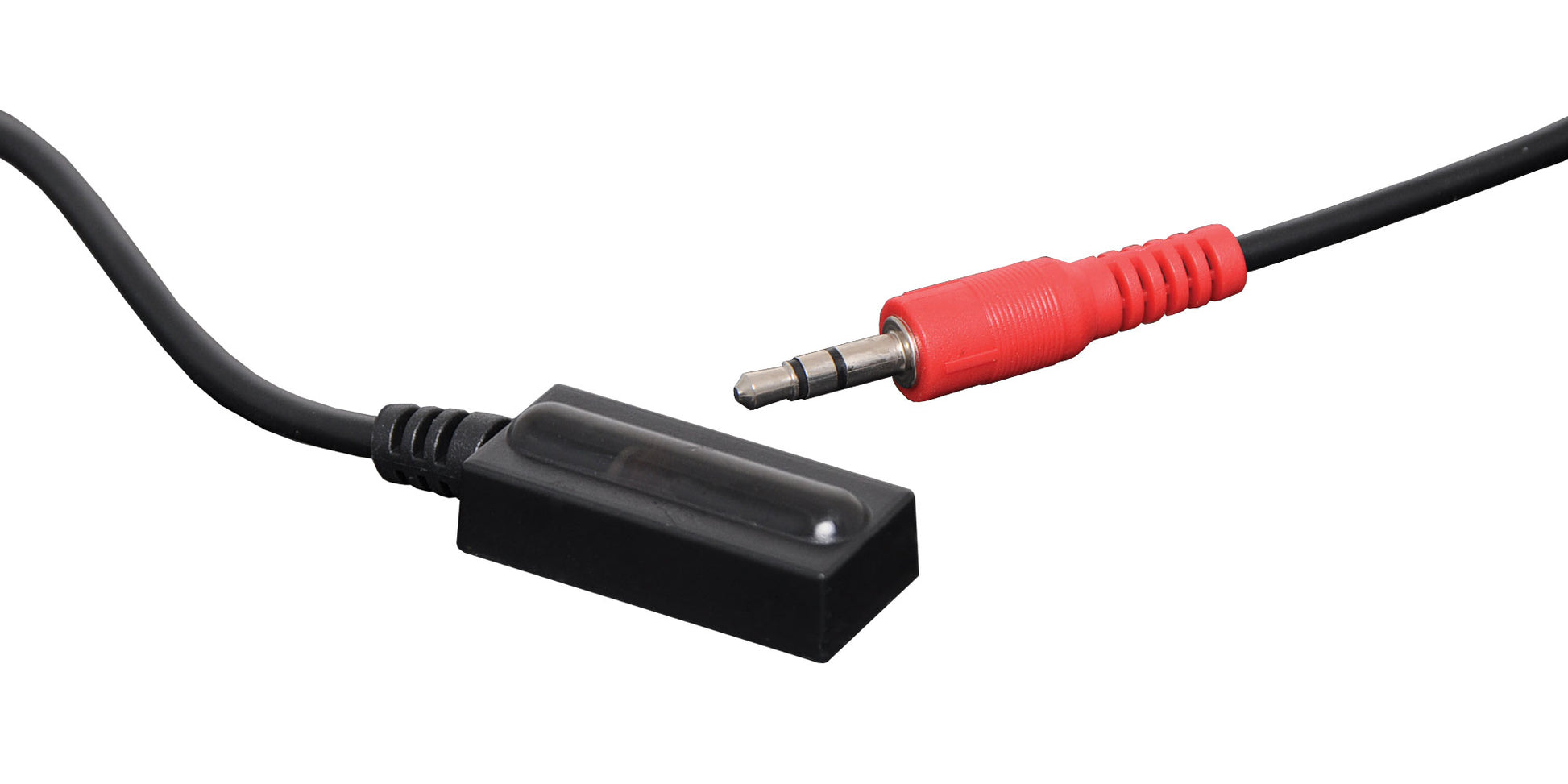

These HDBaseT balun receivers operate with the A3555A HDMI matrix system to provide HDMI output within each zone for 4K ready distributed audio visual systems. They are sold individually and each includes IR receiver, IR transmitter and power supply.
Size: 482W x 250D x 44H mm.

Features

• Incorporates HDBaseT Technology
• Support resolution up to Ultra HD 4Kx2K
• Transmission distance reaches up to 70 meters under the video format of 1080P and 4K up to 40 meters
• POC( Receiver powered by Transmitter)
• Support 3D
• HDCP2.2/1.4 compliant
• CEC pass through
• Support wide-band Bi-directional IR (38KHZ to 56KHZ)
• IR extension from transmitter to receiver or from receiver to transmitter
• Phoenix RS232 Port for firmware update or RS232 control signal transmission
