HDMI & Infra-Red+ARC HDBaseT Cat5e/6 Extender UTP Balun A3244B

SKU: 9321758236178

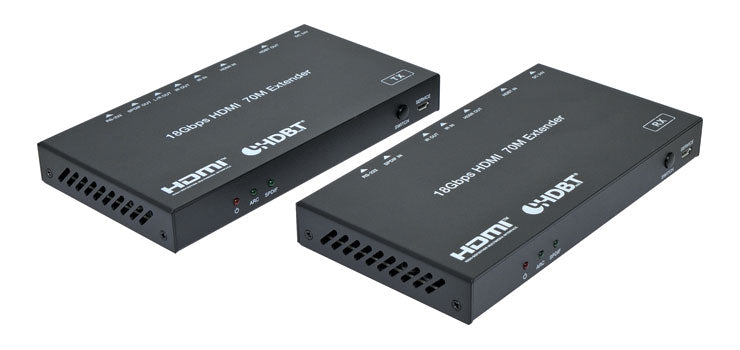

This HDBaseT UTP balun allows transmission of 4K HDMI signals up to 70m with full audio-return-channel (ARC) support and RS-232 control signals. Ideal for digital signage and audio visual installations requiring displays to be located remotely from source equipment. Bi-directional IR control is possible with emitter and target included. Stereo audio & S/PDIF is split from the HDMI signal for easy integration with other amplifiers & equipment. Dimensions: Transmitter / Receiver:165mm (W)×88.3mm (D)×20mm (H)

Box Contents
1x HDMI Over HDBaseT Extender (Transmitter)
1x HDMI Over HDBaseT Extender (Receiver)
1x IR Blaster Cable (1.5m)
1x 20~60KHz IR Receiver Cable (1.5m)
1x 24V/1A Locking Power Adapter
2x 3-Pin Phoenix Connector
4 x Mounting Ear
1x User Manual

HDCP Compliance: HDCP 2.2 / HDCP 1.x
Video Bandwidth: 18Gbps
HDMI Input / Output Video Resolution: 4K2K 50/60Hz 4:4:4, 4K2K 50/60Hz 4:2:0, 4K2K 30Hz 4:4:4, 1080p, 1080i, 720p, 720i, 480p, 480i, All PC resolutions including 1920 x 1200
Extended Distance: 70 meters (resolution is up to 1080P60Hz), 40 meters (resolution is up to 4K60Hz 4:4:4)
Color Space: RGB, YCbCr4:4:4, YCbCr4:2:2, YCbCr 4:2:0
Color Depth: 8-bit, 10-bit, 12-bit [1080P, 4K30Hz, 4K60Hz (YCbCr 4:2:0)], 8-bit [4K60Hz (YCbCr4:4:4)]
HDMI Audio Formats: PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD,, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
HDR formats: HDR10, HDR10+, Dolby Vision
L/R Audio Formats: PCM2.0CH Note that If ARC function is on, the audio port will mute.)
Optical Audio: Formats LPCM2.0, Dolby Digital / Plus, DTS
ESD Protection: Human-body Model: ±8kV (Air-gap discharge) , ±4kV (Contact discharge)

Transmitter Connection
Input: 1×HDMI (IN) TypeA [19-pin female]
Output: 1×HDBT [RJ45]
1×L/R Stereo (OUT) [3.5mm Stereo Mini-jack]
Control: 1×IR IN [3.5mm Stereo Mini-jack]
1×IR OUT [3.5mm Stereo Mini-jack]
1×RS-232 (OUT) [Phoenix jack]
1×Service [Micro-USB jack]

Receiver Connection
Input: 1×HDBT [RJ45]
Output: 1×HDMI (OUT) TypeA [19-pin female]
Control: 1×IR IN [3.5mm Stereo Mini-jack]
1×IR OUT [3.5mm Stereo Mini-jack]
1×RS-232 (OUT) [Phoenix jack]
1×Service [Micro-USB jack]

Housing: Metal Enclosure
Colour: Black
Dimensions: Transmitter / Receiver:165mm (W)×88.3mm (D)×20mm (H)
Weight: Transmitter: 170g, Receiver: 165g
Power Supply: Input: AC100~240V 50/60Hz, Output: DC 24V/1A (Locking connector)
Power Consumption: 13W (Max)
Operating Temperature: 0°C ~ 40°C
Storage Temperature: -20°C ~ 60°C
Relative Humidity: 20~90% RH (non-condensing)
