Utilises the latest HDBaseT technology to send full HD uncompressed HDMI signals over Cat 5e/6 cable. Range up to 70m from source equipment. Infra-red control signals can also be relayed both ways, allowing you to control your equipment remotely. Compatible with Foxtel IQ.
Includes transmitter, receiver, IR target, IR emitter & power supply.
Features
- 70m Range
- HDBaseT single UTP
- HDCP compliant
- Transmitter or receiver unit can be powered via PoE
- Supports uncompressed HDMI signal
- Supports 1080p @ 60Hz (75m)
- Supports 4K x 2K @ 60Hz 24bit (50m CAT5e) (60m CAT6)
- Supports 3D passthrough
- Supports LPCM, DTS digital, Dolby Digital, DTS-HD, Dolby True HD
- Supports 3D
- Supports HDbaseT technology
- Bi-direction IR control (wide band, 20-60KHz)
- Bi-direction delivery of power over cable
- Supports EDID call back
- Supports CEC pass through
- Built-in ESD protection system
Specifications
- Interface (Transmitters): HDMI Input, R2S232, HDbaseT OUT, DC 12V, IR IN, IR OUT

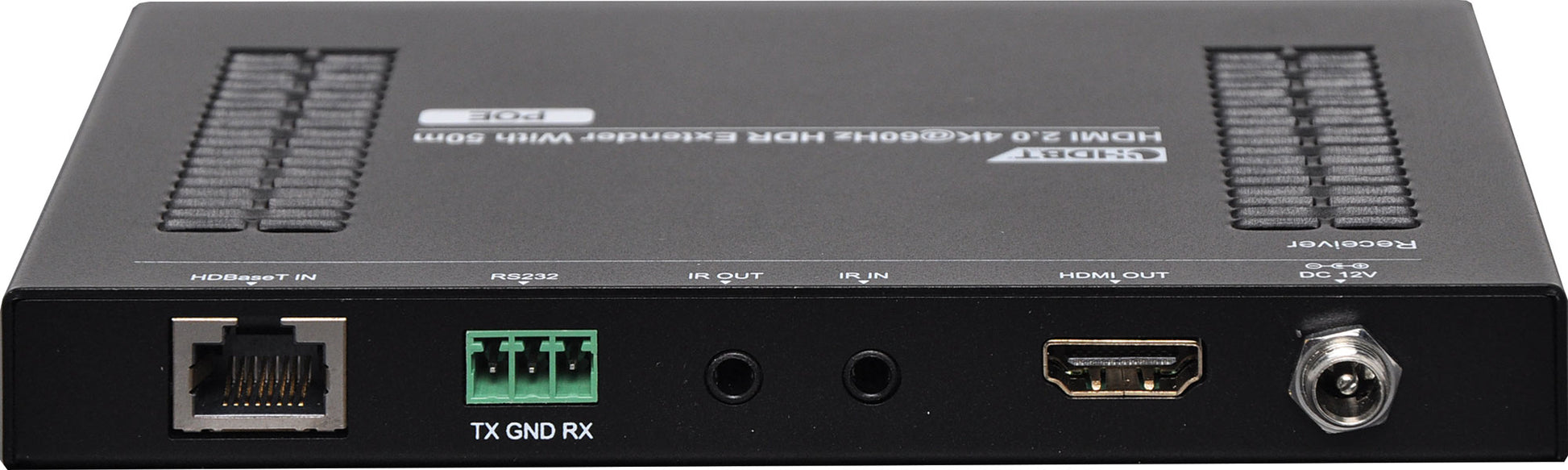

- Interface (Receivers): HDMI Output, R2S232, HDbaseT IN, DC 12V, IR IN, IR OUT
- Power Consumption: <16W (TX + RX with POC)
- POE: 12V 2A DC adapter, any side of transmitter or receiver
- Dimensions: 93 x 88 x 21mm
- Video Bandwidth: Maximum TMDS clock frequency 600 MHz
- Resolution and Distance: 3840*2160 at 60Hz (Ycbcr 4:4:4 24bit) (60m) Cat6

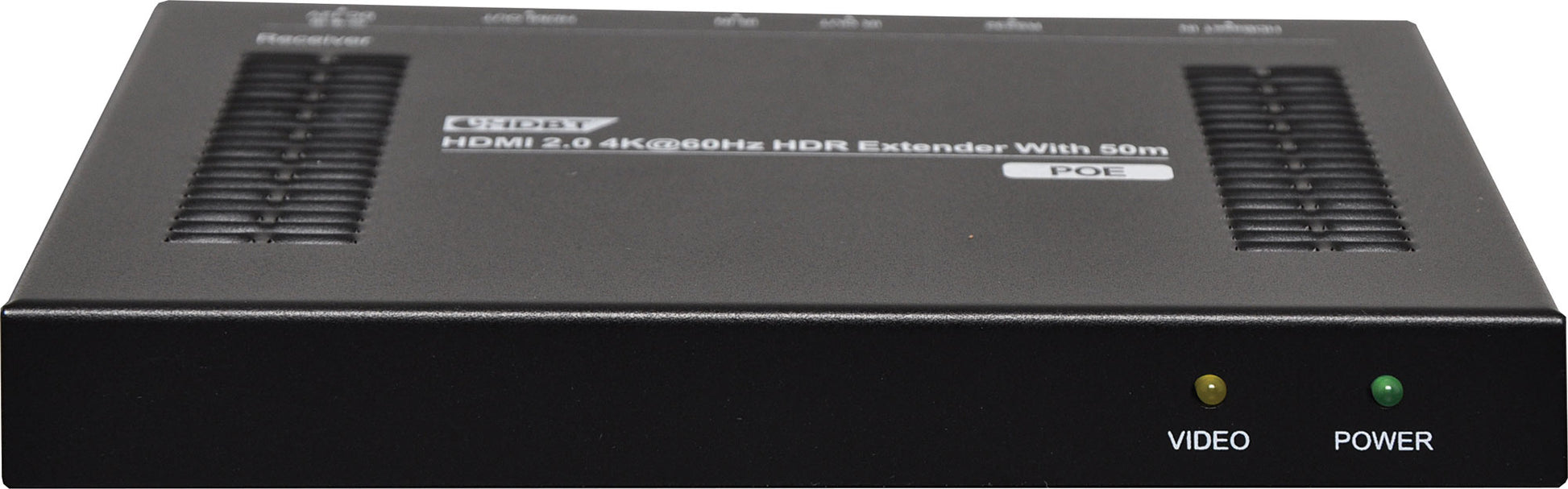

- LED Status: Power LED Green; Video LED Yellow
