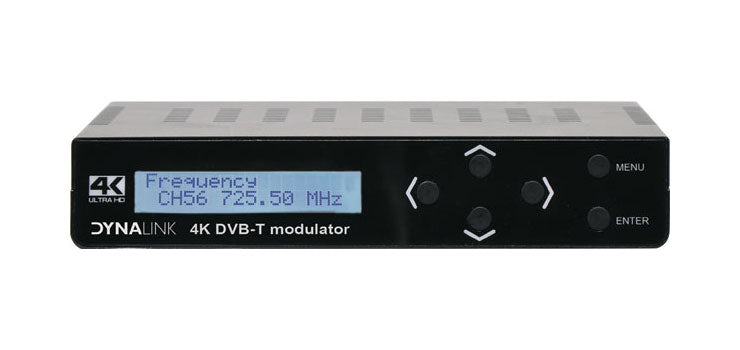

HDMI RF Digital DVB-T Modulator with 4K Loop Output A1129A
HDMI RF Digital DVB-T Modulator with 4K Loop Output A1129A
Couldn't load pickup availability
A high performance HD modulator module able to generate a signal in DVB-T format (Digital Terrestrial Television) from HDMI input. This modulator allows you to distribute any HD device signals (Foxtel, DVD etc) in HD around the home or business with ease. It is equipped with one channel HDMI input, one HDMI out (4K pass-though) and one DVB-T RF out (1080p Max resolution). It also adjusts the compression rate to the available bandwidth.
Note: To be able to see the 4K signal output from HDMI OUT (HDMI Pass through)port, the specifications requirement of connected TV listed; 4K Ultra HD (3840x2160) Resolution, HDMI 2.0, HDCP 2.2/1.4, Support 4K50P/60P, HDMI 2.0 Cable
Package Contents
1 x HDMI DVB-T Modulator
1 x 12V Power adapter
1 x User Manual
Features
- 1080p modulated resolution
- HDMI 4K pass through
- H.264 video compression
- 30dB MER (typical)
- 100dB output level
- RF TV antenna input
- 177-858MHz frequency
- Includes power supply
Specifications

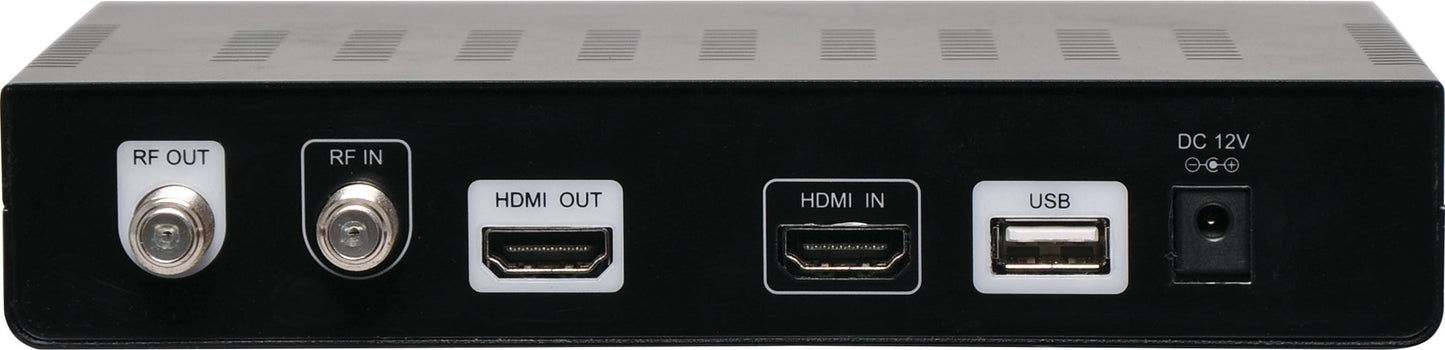

Connections
- HDMI IN: Max 4K Resolution
- HDMI OUT: 4K Pass Through
- RF Output: 1 DVBT RF output with type F female, 75 ohm (Max 1080P resolution)
- RF Input: RF Combiner
- Modulation: Standard: DVBT (ETSI EN 300 744) Constellation: QPSK, 16QAM, 64QAM Guard Interval: 1/4, 1/8, 1/16, 1/32
- FFT Carriers Mode: 2K, 8K
- Bandwidth: 6MHz, 7MHz, 8MHz, 7-8MHz
- Power Supply: 12V Adapter

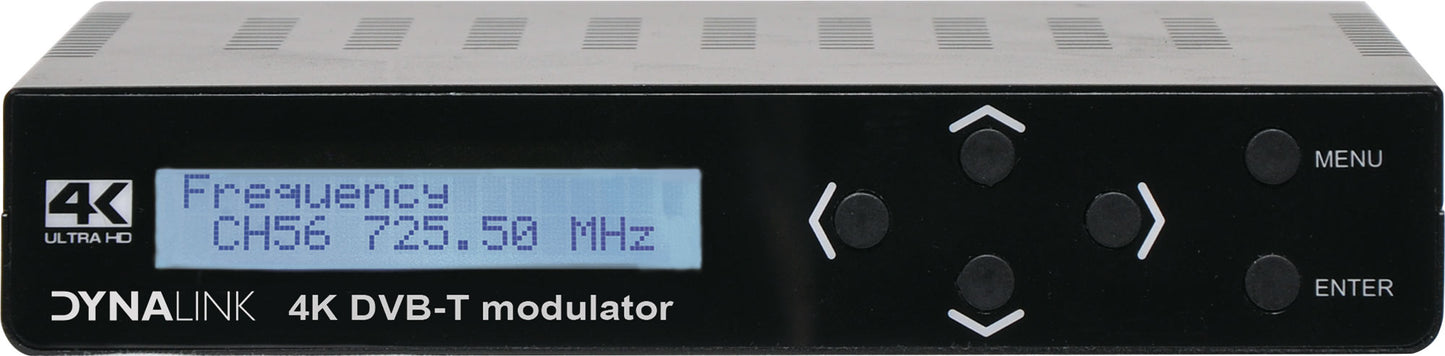

- Display: LCD panel @ 2 x 16 characters (on front panel).
- Configuration: 6 Local keys on front panel
- Environmental for operating: Temperature range: 5°C- 40°C Relative Humidity: 80% @ 30°C
Source Input
- Input Channel: 101
- Video: HDMI
- Video System: 480i/p, 576i/p, 720p, 1080i/p, 4K(3840x2160 or 4096x2160)
- Audio System: HDMI
Compression
- Video: H.264 Baseline Profile Level 4.0
- Video Resolution: 1080p 25 / 30 Max
- Video Bit rate: 12Mbps MAX
- Audio: MPEG-2 / AAC
- Audio Bit rate: 192 Kbit/S
- DVB insertion tables: SDT, NIT
- Editable Field: Service Name , Network Name , Provider Name , TS ID , Network ID , Original NET ID, LCN , NIT Version , Private Data ,Country
RF Output
- Type: 1 Multiplex DVBT with a digital TV service
- Frequency: 177 – 858 MHz
- MER: 30 dB Min.
- Output level: 100 dBuV
- RF Level Adj: 0 dB ~ -30dB
- Attenuation step: 1dB per step
