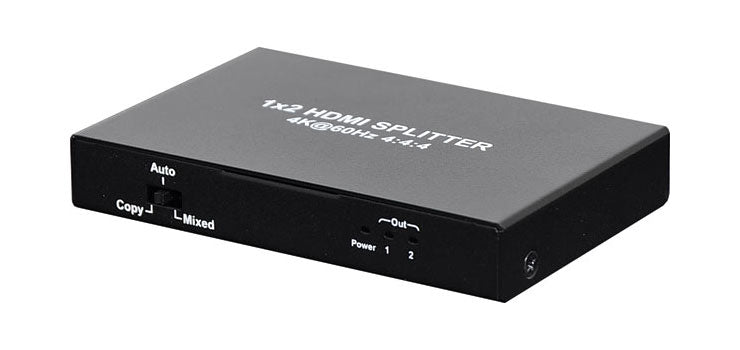

HDMI Splitter V2.0 18GBps Bandwidth 2 Way A3134E

SKU: 9321758224113


Allows the connection of a single HDMI source to multiple HDMI displays with no loss of quality. Uses include home theatre, conference centres, sports bars etc. Includes power supply. HDCP compliant. 3D 4K x 2K, 12-bit deep colour and HD lossless audio support. 2 Way V2.0 18Gbps Bandwidth.

Package Contents
1 x HDMI Splitter
1 x 5V/1A DC Adaptor
1 x User Manual


  • Supports full 3D video format
  • Displays an Ultra HD source on up to two Ultra HD displays
  • Support high resolution up to 3840X2160@60Hz
  • Supports four kinds of EDID handling abilities
  • Supports HDCP2.2/1.4 Compliant
  • Supports 36 bit deep colour
  • Supports LPCM 7.1 Dolby True HD, Dolby Digital Plus and DTS-HD Master Audio
  • Bandwidth 18G
  • Supports HDR
  • Supports online firmware upgrade via Micro USB Port



  • Operating Temperature Range: -5 to +40°C
  • Operating Humidity Range: 5 to 90%RH (No condensation)
  • Bandwidth Frequency: 18Gbps
  • HDCP: HDCP2.2
  • Input Ports: 1 x HDMI (Female)
  • Output Ports: 2 x HDMI outputs (Female)
  • Resolution Output: up to 4K x 2K (3840X2160@60Hz YUV 4:4:4)
  • Dimensions: 93.6 x 61 x 15mm
  • Power Consumption: 1W Max
  • Transmission Distance: 15, (Maximum) over standard HDMI cable/26AWG
  • Weight: 120g
