This ingenious Foxtel compatible device allows you to extend your 1080p HDMI source over any 2-conductor cable including twisted cable, telephone cable or Cat5/6 etc. We recommend 12AWG - 19AWG cable. The transmitter compresses/ converts the HDMI signals into a serial data stream, which is then encoded for transmission over any copper media.
It is an ideal HDMI extender over your existing cabling. It can distribute HDMI up to 3800m. Includes power supplies and mounting hardware. Size: 206 x 110 x 33mm. NOTE: This is not a HDMI over mains product. DO NOT CONNECT TO MAINS VOLTAGE WIRING OF ANY KIND.
Features
- HDMI over 2-conductor cable (Such as Twisted cable, telephone cable, Cat5e/6/7 cable etc)
- With 1x Loop HDMI output at transmitter
- Transmission more than 3800m
- Support Multi-level cascading
- HDMI Resolution up to 1080p
- HDCP compliant
- IR pass-through control
- Includes power supply
Specifications
- Support Audio Format: LPCM audio format
- Transmission Distance: 3800m 2-Conductor cable (Recommend to use 12AWG-19AWG cable)
Supported Video Format:
- DTV/HDTV:480i/ 480P/576i/576P/720P/1080i/1080P
- VESA: 800x600, 1024x768, 1280x768,1280x960,1280x1024, 1680x1050,1920x1080, 1280x720, 1360x768,1400x1050,1280x1024.

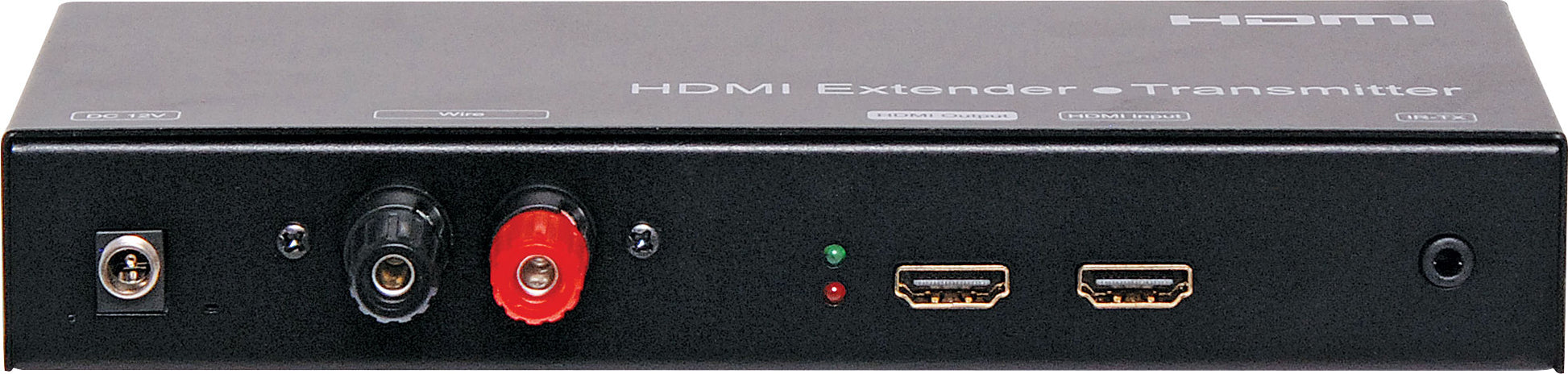

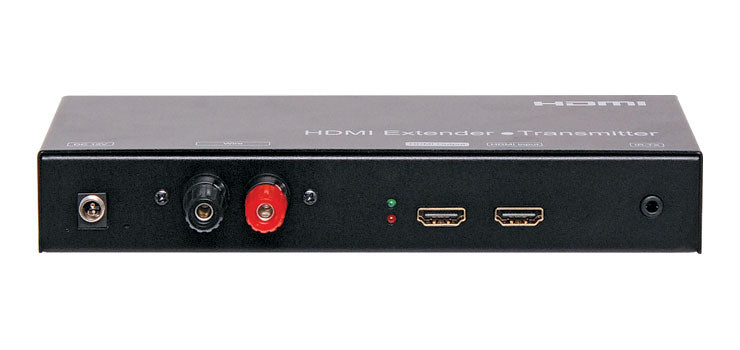

Connector on Transmitter:
- 1x HDMI Input, 1x HDMI Looing output
- 1x 3.5mm jack for IR-TX
- 1x Red Terminal Post, 1x Black Terminal Post
- DC 5.5 x2.1mm Jack
Power consumption: 6.5watts(Maximum)
- Dimension: 206Lx110Wx33Hmm
- IR frequency: 38K-56KHZ
- Weight: 545g
