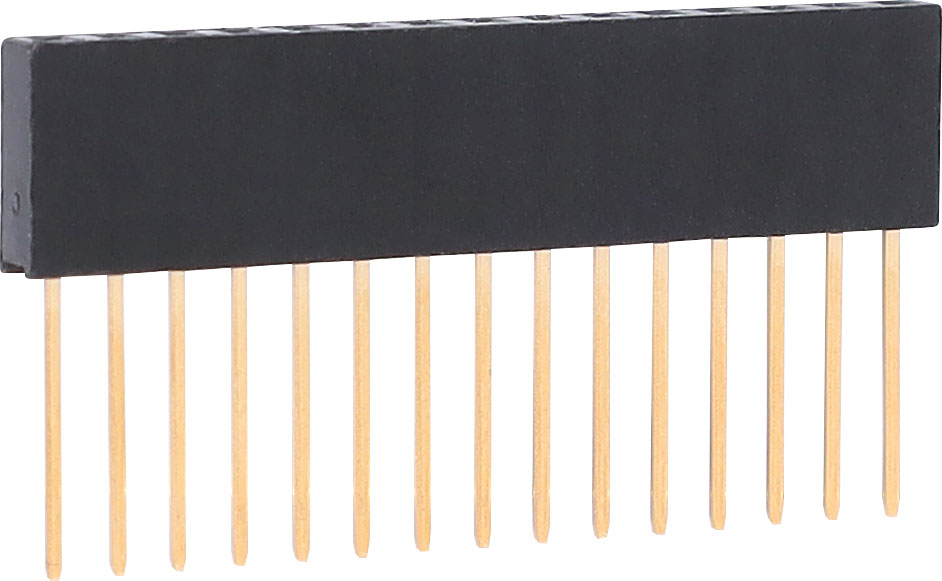

These stackable headers are made to work with the SparkFun Qwiic Shield for Arduino Nano or any comparable shield to connect the shield with a Arduino Nano footprint. The pins are spaced by 0.1".
They allow you to stack a Qwiic Nano shield on top of your Arduino Nano or plug them into a solder-less breadboard.
Note: Soldering is required for functionality and physical attachment to a shield or board.
Specifications
- Current Rating: 3A
- Withstand Voltage: 1000V AC
- Contact Resistance: 20 megaohms (min)
- Insulation Resistance: 100 megaohms (min)
- Operating Temperature: -40°C ~ +105°C
- Housing: PBT (UL94V-0), Black
- Contact: Brass, gold flash over nickel
