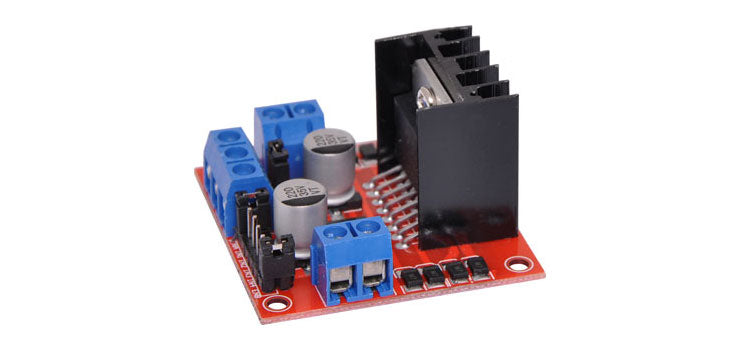

L298N Dual Motor Module for Arduino Z6442

Uses an L298N H-Bridge designed to drive inductive loads, such as relays, solenoids, DC and stepping motors. It can also drive two independent DC motors or 1 stepper motor at 2A continuous current per channel. 5V input.

Voltage Range: 5 – 35 VDC
Recommended Voltage Range: 7 – 12 VDC
Voltage Range (5V): 4.5 – 5.5 VDC
Max Current per Bridge: 2A
Max Power of Module: 25W
Driver Board: 54 x 44 x 28 mm
