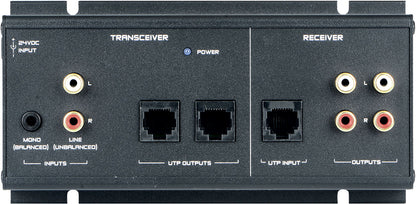

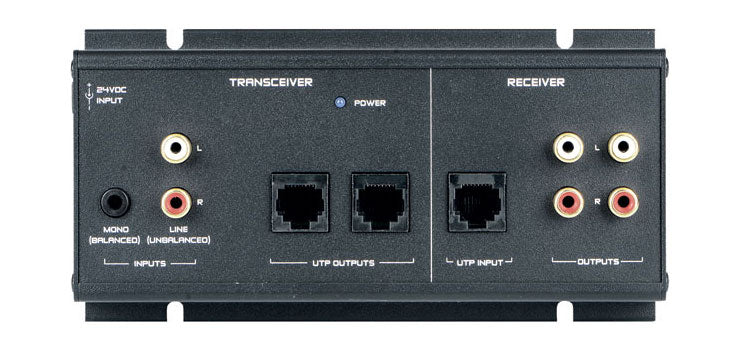

Local Input/Output Hub Interface Box A4832

This Local Input/Output Hub Interface Box is a compact system hub for interfacing input and output wallplates together with existing zone audio amplifiers and audio sources. Allows connection for up to 2 UTP output wallplates and a single UTP input wallplate. Two stereo RCA outputs provide connection to line input on external amplifiers.

Features

• Design Transceiver and Receiver in one Module
• Provides the Power to Connected Receivers
• Sends Left and Right Audio Channels
• Unbalanced Stereo RCA Input from Audio Source
• Balanced 3.5 Jack Audio Input from Mono Source
• Audio Signal Goes to two UTP RJ45 Outputs
• CSP Receiver Compatible with all 2 pair transceiver wallplates
• Two RCA stereo unbalanced outputs
• L (Left) Output Goes to Pair B; R (Right) Goes to Pair C
• Daisy chain topology
• AFC Design (AFC: Auto Feedback Gain Circuitry)

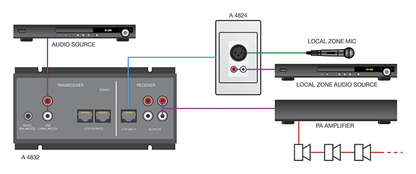

Purple - Stereo RCA cabling
Red - 100V line speaker cabling
Blue - UTP Cat 5e/6 data cabling
Green - Balanced audio cable
