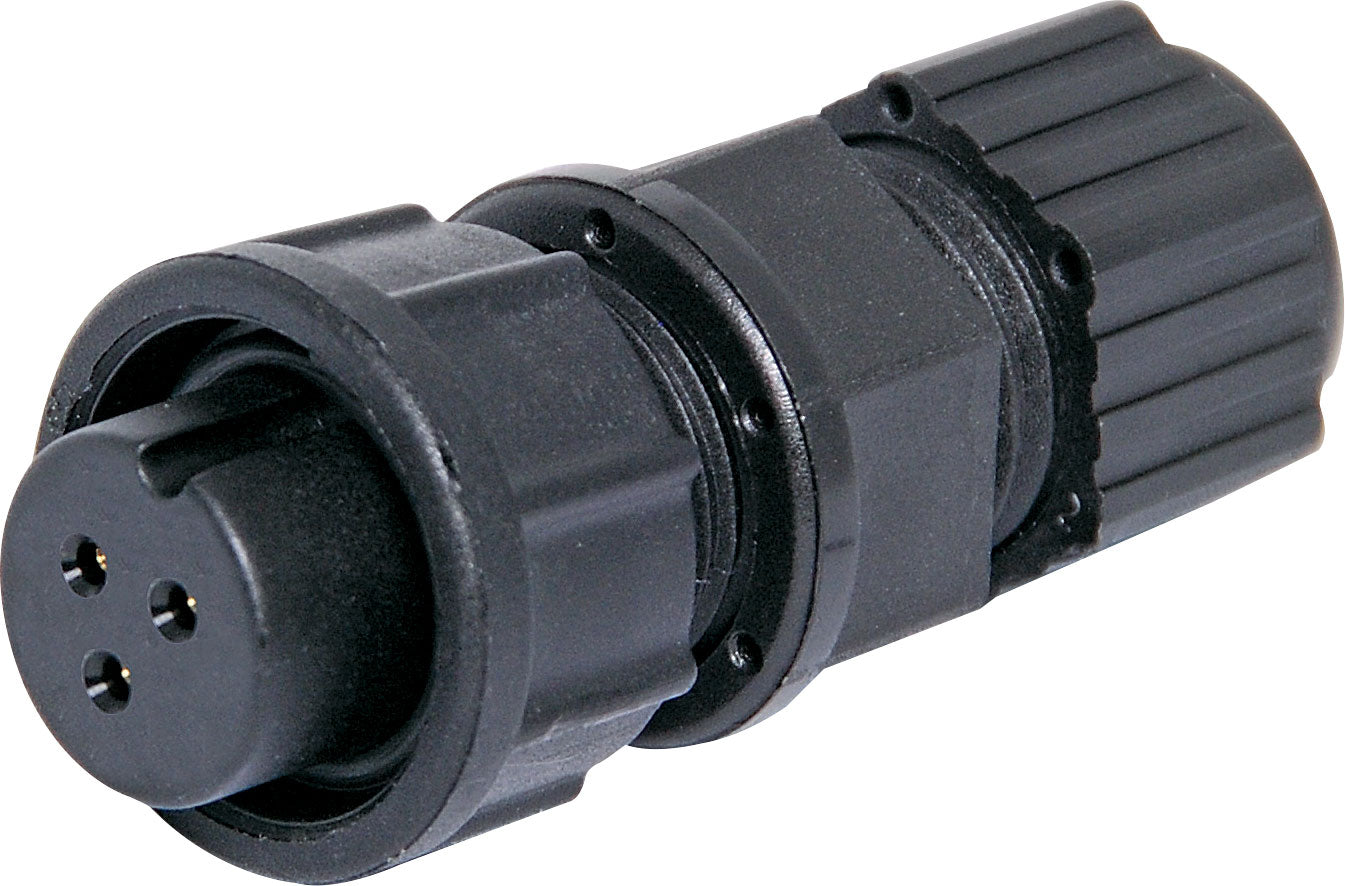

Locking Female Line IP67 Waterproof Socket 3 Pin 5A P9483
Locking Female Line IP67 Waterproof Socket 3 Pin 5A P9483
Regular price
$22.00
Regular price
Sale price
$22.00
Unit price
per
Taxes included.
Couldn't load pickup availability
Waterproof IP67 rated 3 Pin Female Line connector for installations outdoors or in areas prone to moisture build up. Lock Type mating ring. 5A rated.
Specifications
- Number of Contacts: 3
- Gender: Male
- Mounting Type: Panel Mount
- Connector Size: Standard
- Termination Method: Solder
- Current Rating: 5A
- IP Rating: IP67
- Contact Gender: Male
- Voltage Rating: 500V dc
- Mating Type: Bayonet
- Body Orientation: Straight
- Series: BD
- Housing Material: Glass Fibre Reinforced Nylon
- Minimum Operating Temperature: -40°C
- Contact Material: Copper Alloy
- Contact Plating: Gold
- Maximum Operating Temperature: +105°C
