Locking Male Line IP67 Waterproof Plug 3 Pin 5A P9473

Name: Locking Male Line IP67 Waterproof Plug 3 Pin 5A P9473
Brand: Altronics
SKU: 9321758141182
Price: 21.00 AUD
Availability: InStock

$21.00

Sale Sold out

Taxes included.

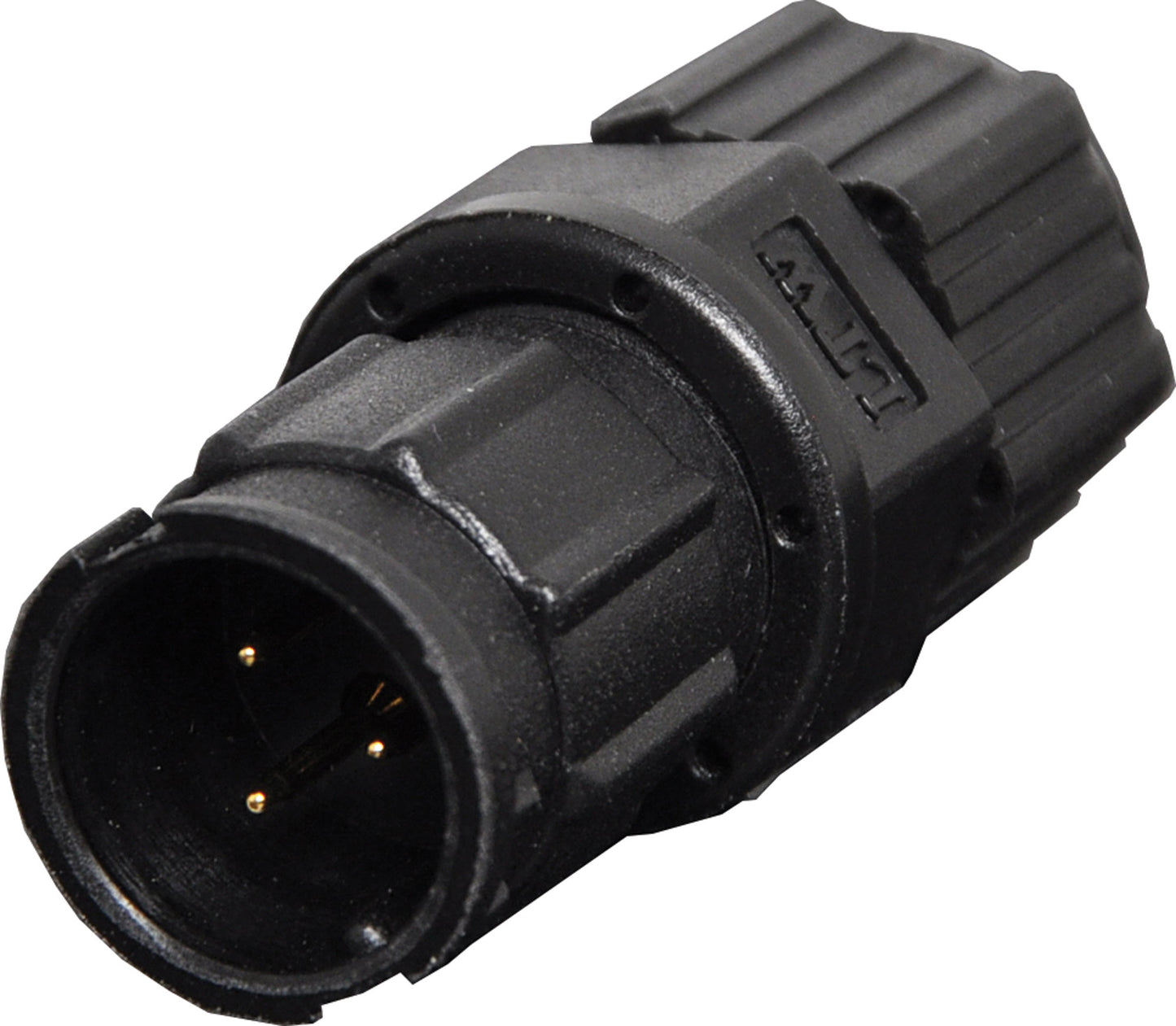

Waterproof IP67 rated 3 Pin male line connector for installations outdoors or in areas prone to moisture build up. 5A rated.

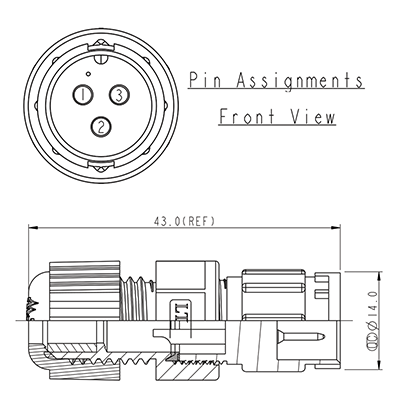

Dimension Drawing

Specifications

Number of Contacts: 3
Gender: Male
Mounting Type: Panel Mount
Connector Size: Standard
Termination Method: Solder
Current Rating: 5A
IP Rating: IP67
Contact Gender: Male
Voltage Rating: 500V DC
Mating Type: Bayonet
Body Orientation: Straight
Series: BD
Housing Material: Glass Fibre Reinforced Nylon
Maximum Operating Temperature: +105°C
Minimum Operating Temperature: -40°C
Contact Plating: Gold
Contact Material: Copper Alloy
