Locking Male PCB IP67 Waterproof Plug 3 Pin 5A P9493

Name: Locking Male PCB IP67 Waterproof Plug 3 Pin 5A P9493
Brand: Altronics
SKU: 9321758147382
Price: 13.75 AUD
Availability: InStock

$13.75

Sale Sold out

Taxes included.

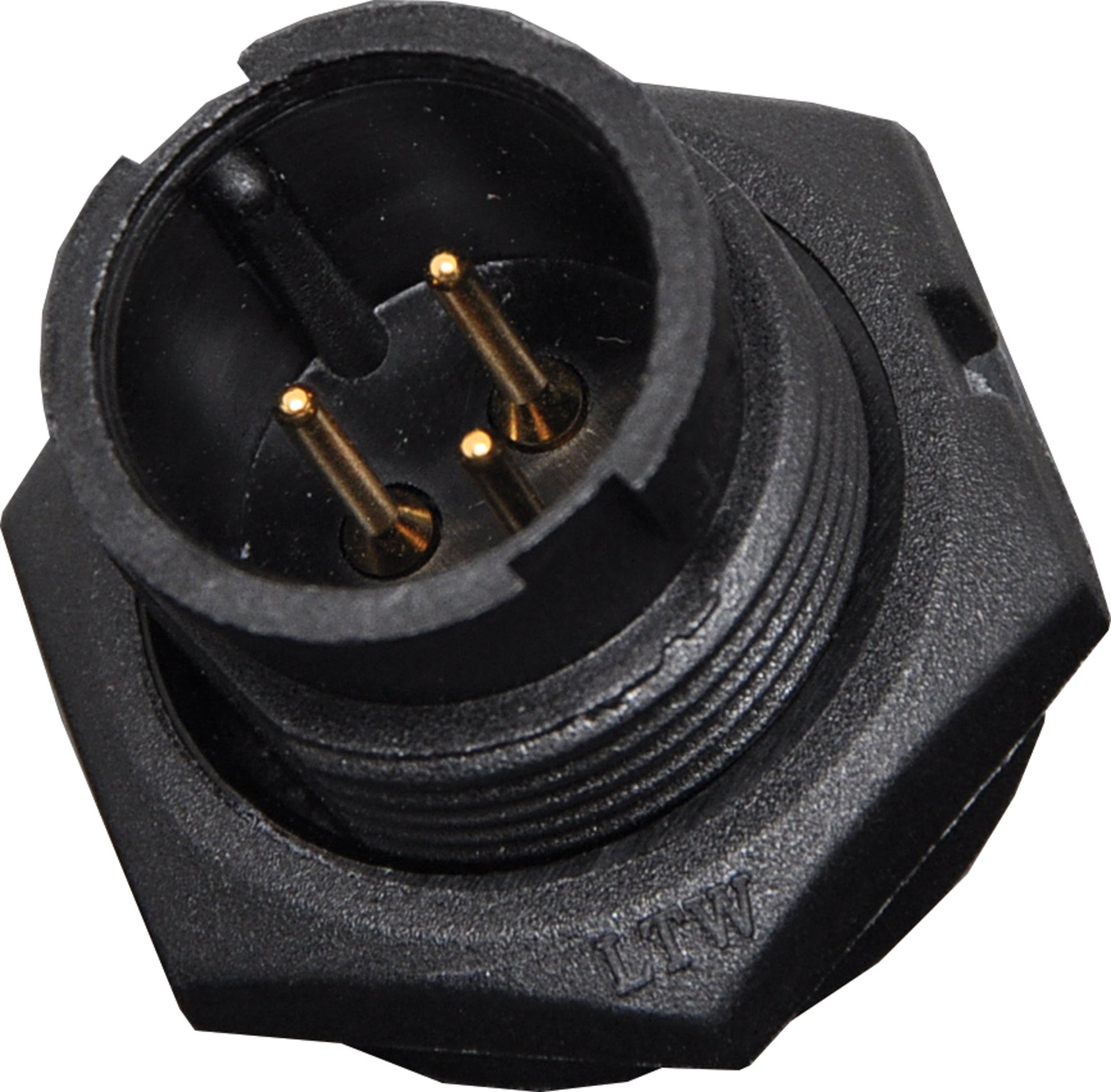

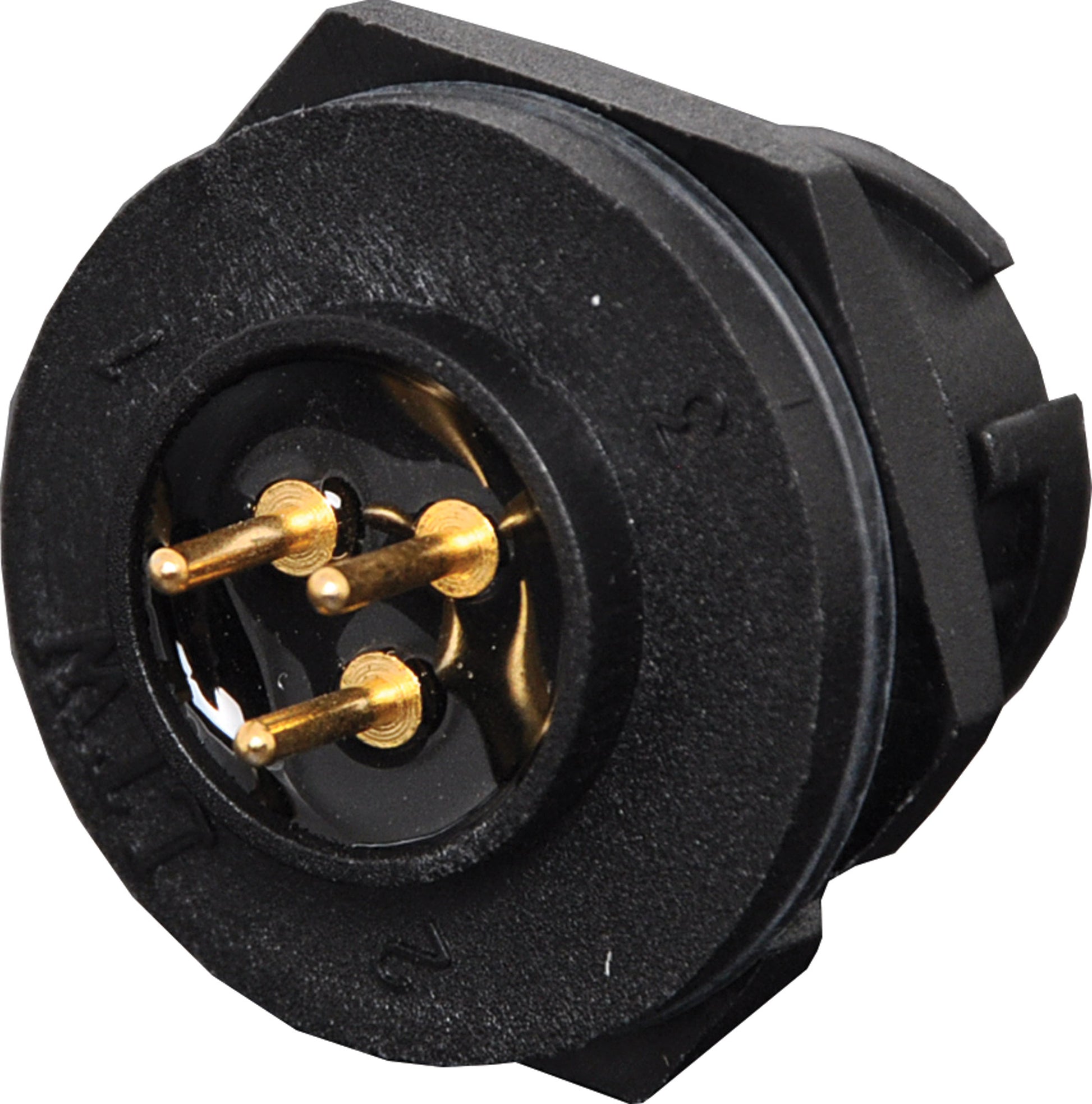

Waterproof IP67 rated 3 Pin Male Chassis Mount PCB Connector. Lock type mounting ring.

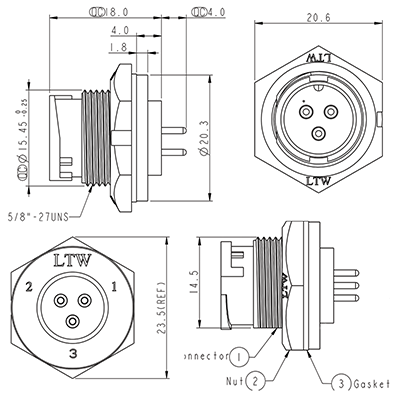

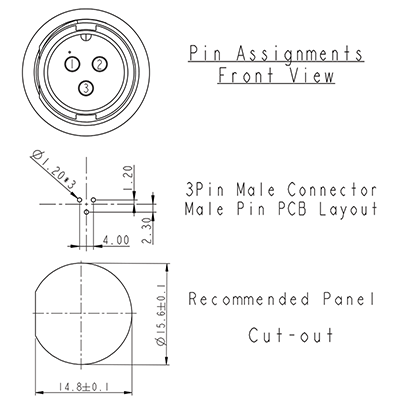

Dimension Drawing

Specifications

Number of Contacts: 3
Gender: Male
Mounting Type: Panel Mount
Connector Size: Standard
Termination Method: Solder
Current Rating: 5A
IP Rating: IP67
Contact Gender: Male
Voltage Rating: 500 V dc
Mating Type: Bayonet
Body Orientation: Straight
Series: BD
Housing Material: Glass Fibre Reinforced Nylon
Contact Plating: Gold
Contact Material: Copper Alloy
Minimum Operating Temperature: -40°C
Maximum Operating Temperature: +105°C
