Phono Preamp with AUX input A3052

SKU: 9321758237786

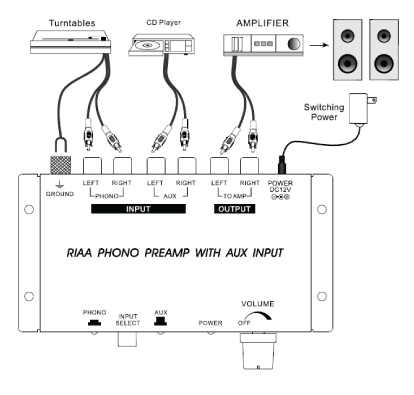

This phono preamp can be used to raise your turntable's output to make it compatible with modern amplifiers. At the same time, it adds standardised equalisation. Users may need this phono preamp because their turntable either doesn't have one, in which case they won't be able to play records without one. Or maybe users just want to upgrade their turntables sound beyond what's possible with the built-in preamp. This preamp supports AUX input and has an accurate and stable integrated circuit design. Size (LxWxH): 145 mm x96 mm x 31mm.

Input Impedance : 47K ohms
Output Impedance : 100 ohms
Phono Amplitude Gain : 40 dB (@1KHz)
AUX Amplitude Gain : 6 dB
Maximum Input : 50mVpp
Output Level : 5Vpp
Frequency Response : 20 Hz to 20K Hz
Signal to Noise Ratio : 70 dB
Power Source: 12 VDC
Size (LxWxH): 145 mm x96 mm x 31mm
