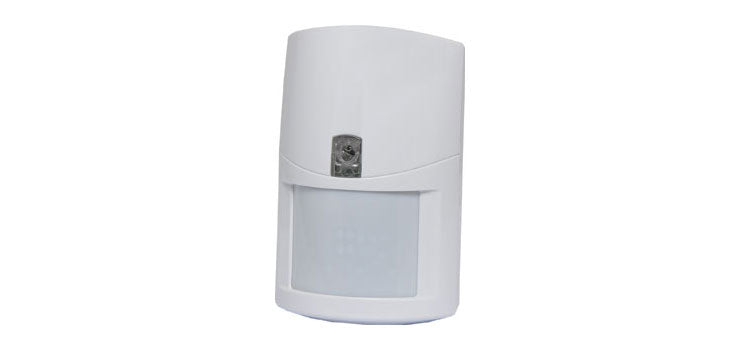

Say goodbye to unnecessary cables with this wireless PIR Lux ideal to be mounted on ceilings and walls for motion detection within a 15mx15m coverage. With the added feature of a night light a motion-activated cone of light will help you find your way around at night. The night-light remains lit as long as it detects motion and stays on for an extra 10 seconds after motion has stopped.
Note: Requires S 5289 wireless receiver on the alarm panel to operate.
Dimensions: 112(h) x 72(w) x 48(d) mm
Mounting Height: 2.1m – 2.4m
Coverage: Up to 15m x 15m @ 90°
Detector Zones: 20 dual element zones
Pulse Count: Selectable 1–2 or 3–4
Range: Selectable High/Low. 15m max./12m max.
Sensor: Dual element pyroelectric
Alarm Indication: Blue alarm LED
Night Light: White LED Light with adjustable threshold, Dark/Dim Light
Alarm Period: 5 seconds
Operating Voltage: 3V DC
Battery: 2 x CR123A Lithium
Quiescent Current: < 14μA
Radio Frequency: 304MHz
Transmit Power: 100μW
