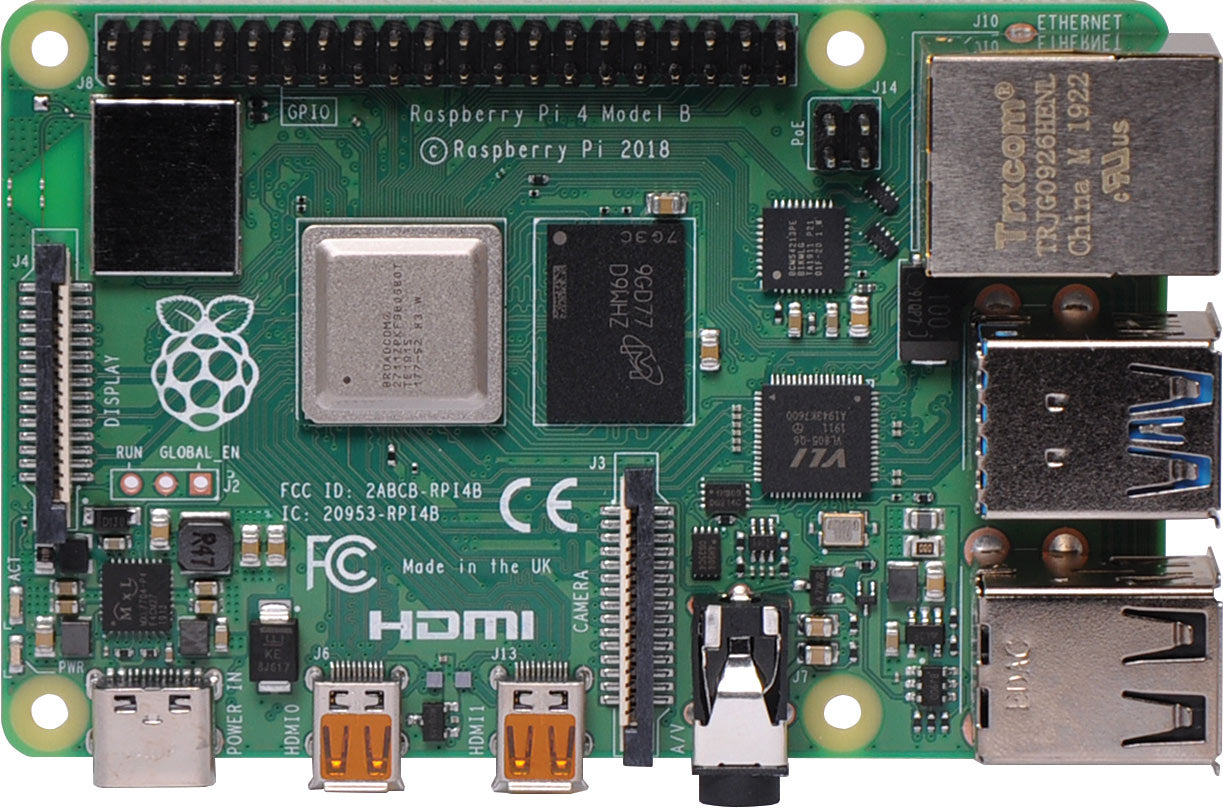

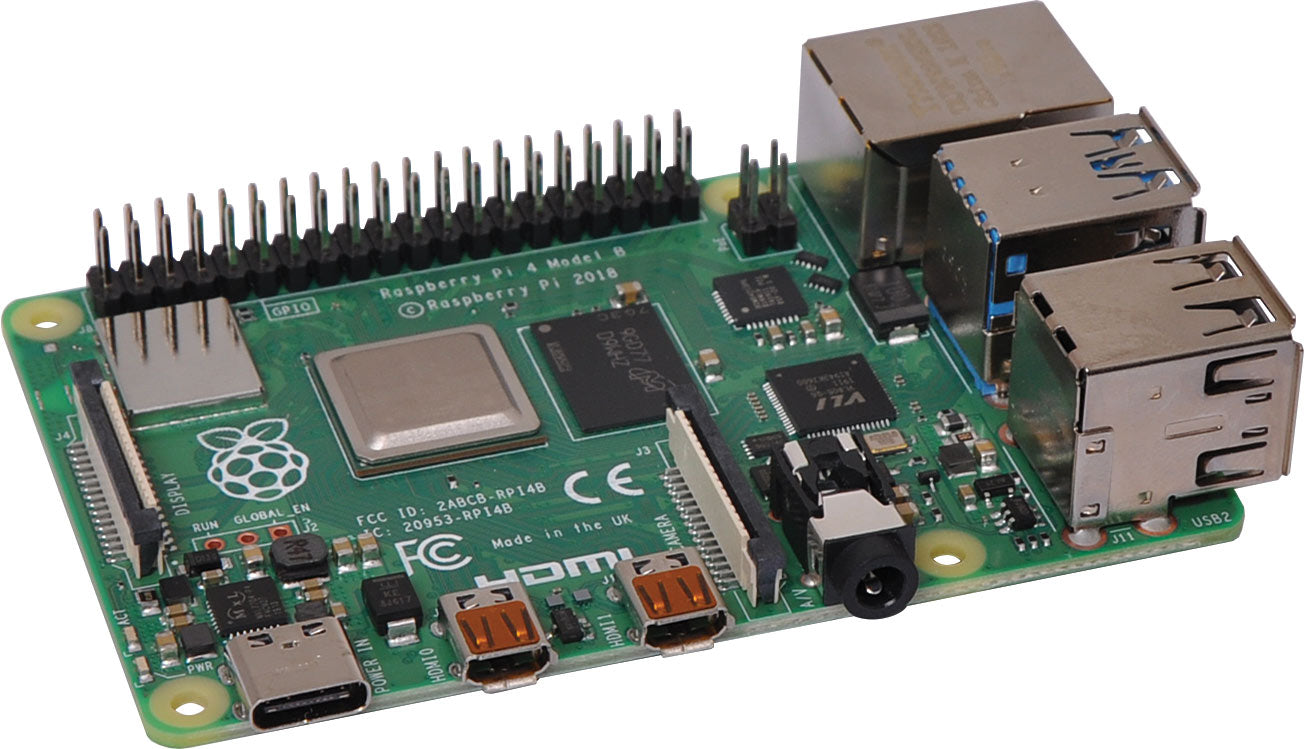

Raspberry Pi 4 Model B Single Board Computer 8GB Z6302H

Raspberry Pi 4 Model B Single Board Computer 8GB Z6302H

Regular price $181.00
Regular price $181.00 Sale price $181.00
Sale Sold out
Taxes included.

LIMIT 1 PER CUSTOMER

The Raspberry Pi 4 Single Board Computer 8GB is the latest product from Raspberry Pi. The speed and performance of the new Raspberry Pi 4 is a step up from earlier models. For the first time, Raspberry Pi has built a complete desktop experience.

Whether you're editing documents, browsing the web with a bunch of tabs open, juggling spreadsheets or drafting a presentation, you'll find the experience smooth and very recognisable — but on a smaller, more energy-efficient and much more cost-effective machine. With the new model you can run two monitors at once in 4K.

With the added feature of no fans the Raspberry Pi 4 is energy-efficient and runs silently and uses far less power than other computers. Another new feature is the upgraded USB capacity: along with two USB 2 ports you'll find two USB 3 ports, which can transfer data up to ten times faster.

Features

  • 1.5GHz quad-core ARM Cortex-A72 CPU
  • VideoCore VI graphics
  • 4kp60 HEVC decode
  • True Gigabit Ethernet
  • 2.4 GHz and 5.0 GHz IEEE 802.11ac wireless, Bluetooth 5.0, BLE
  • 2 × USB 3.0 and 2 × USB 2.0 ports
  • 2 × micro-HDMI ports (1 × 4kp60 or 2 × 4kp30)
  • USB-C for input power, supporting 5.1V 3A operation
  • LPDDR4 RAM variants available for 2GB and 4GB (Z 6302E and Z 6302G)

Specifications

  • Broadcom BCM2711, Quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
  • 8GB LPDDR4-2400 SDRAM (depending on model)
  • 2.4 GHz and 5.0 GHz IEEE 802.11ac wireless, Bluetooth 5.0, BLE
  • Gigabit Ethernet
  • 2 USB 3.0 ports; 2 USB 2.0 ports.
  • Raspberry Pi standard 40 pin GPIO header (fully backwards compatible with previous boards)
  • 2 × micro-HDMI ports (up to 4kp60 supported)
  • 2-lane MIPI DSI display port
  • 2-lane MIPI CSI camera port
  • 4-pole stereo audio and composite video port
  • H.265 (4kp60 decode), H264 (1080p60 decode, 1080p30 encode)
  • OpenGL ES 3.0 graphics
  • Micro-SD card slot for loading operating system and data storage
  • 5V DC via USB-C connector (minimum 3A*)
  • 5V DC via GPIO header (minimum 3A*)
  • Power over Ethernet (PoE) enabled (requires separate PoE HAT)
  • Operating temperature: 0 – 50 degrees C ambient

Note:A good quality 2.5A power supply can be used if downstream USB peripherals consume less than 500mA in total.
