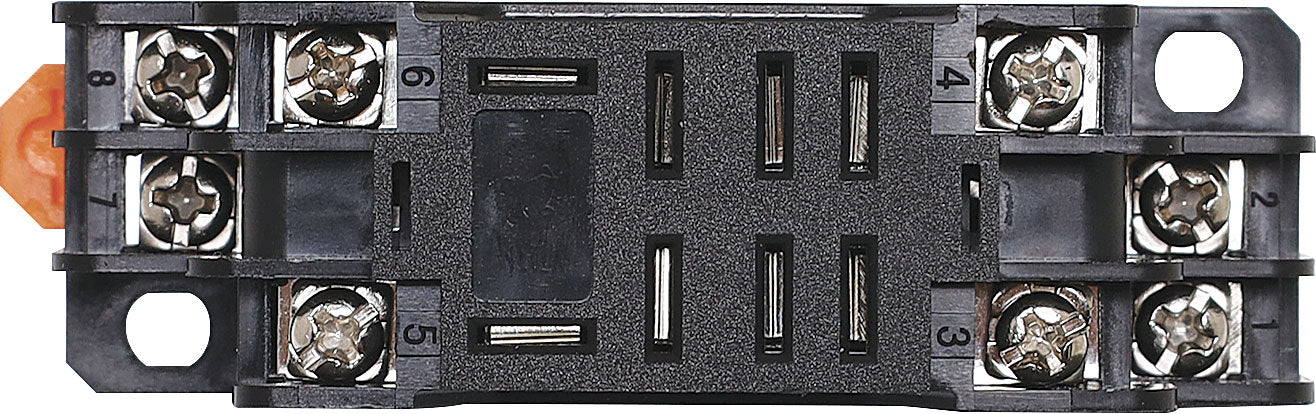

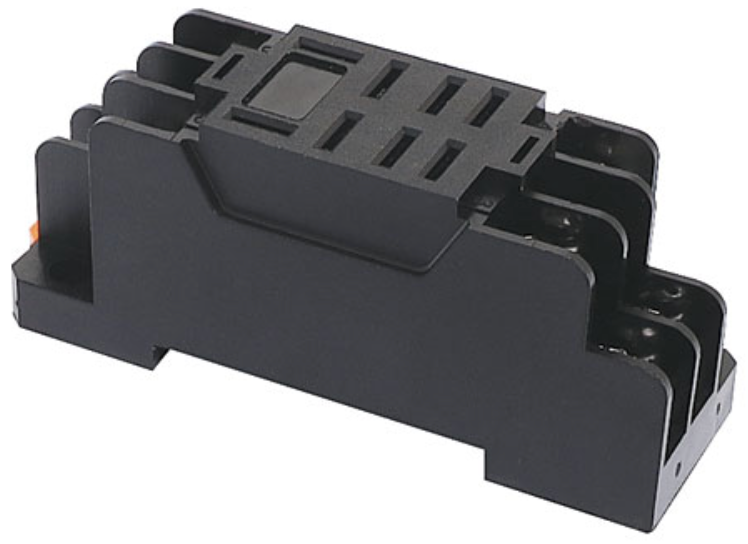

Relay Chassis/DIN Rail Mount Cradle Base S4318B

SKU: S4318B

Price:
$7.50

Can be either DIN rail mounted or chassis mounted as required. Connections are via screw terminals.

Specifications

  • Nominal Load: 10A, 300V AC/DC
  • Torque: 1.0 N.m
  • Ambient Temperature: -40 ~ +70°C
  • Wire Size: 20-14AWG/0.5-0.25mm2
  • Weight: 31g

    *Specifications are subject to change without notice.
