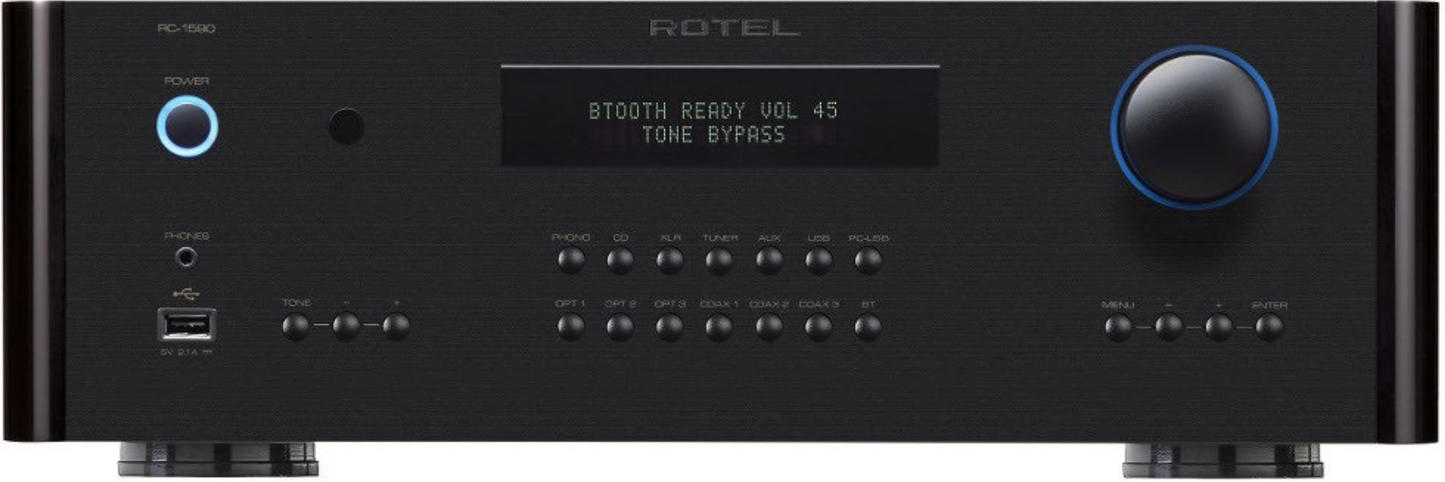

Rotel RC-1590 Stereo Preamplifier RC1590BLK

SKU: 20026790

Price:
$2,999

It's all about control.

The RC-1590 stereo preamplifier has been engineered to the highest audio performance levels, and provides and incredible level of control and flexibility for the use. Starting with a high performance power supply consisting of two Rotel custom built toroidal transformers for maximum efficiency and low magnetic fields, these transformers provide low-noise isolation between the analogue and digital regulator circuits with custom-made slit-foil capacitors. These have very quick charge/discharge times and low signal loss ensuring tight bass performance.

Rotel engineers wanted to create a reference-quality stereo preamplifier to match with our new RB-1590 stereo power amplifier. Every aspect of component selection and circuit topography was designed and carefully evaluated during multiple listening sessions to ensure the highest fidelity. For example, analogue and digital circuits were designed separately, by specialised Rotel teams. Analogue inputs are all very low noise circuitry and include a high performance moving magnet phono stage. Digital inputs are fully isolated and feature a precision 32-bit 768kHz Digital to Analogue Converter (DAC).

The RC-1590 is fully feature.laden with Balanced XLR and Unbalanced RCA inputs and outputs, a TI precision volume control IC, a fixed volume line output, dual mono subwoofer outputs, digital outputs (Coax and Optical), digital inputs (3 Coax and 3 Optical), Aux, CD, and Tuner analogue inputs, Internal APTX Bluetooth with rear-mounted external antenna, a front USB iPod port with 2.1A charging supply, and rear panel PC-USB 24-bit 192kHz input supporting DSD (Windows) and DoP (DSD over PCM for Mac OS X).

Other essential features include a remote control, 2 x 12-volt trigger outputs, a dimmable display, an automatic power off function (configurable), RS232 and IP control for automation system integration, Internet based software updates, Rotel Link connection, a detachable IEC power cord, an external IR remote input, and a front mounted 3.5mm headphone output jack.

For music enthusiasts who won't accept compromise, the RC-1590 preamplifier is in a class of its own, at a price that belies its incredible performance.

Total Harmonic Distortion: < 0.004% (20Hz - 20kHz)


Input Sensitivity/Impedance:
Phono Input (MM) - 2.5mV / 47k ohms
Line Level Inputs (RCA) - 150mV / 100k ohms
Line Level Inputs (XLR) - 250mV / 100k ohms

Output Level:
Line Level (RCA) - 1V
Balanced (XLR) - 2V

Frequency Response:
Phono Input - 20Hz - 20kHz, +/- 0.2dB
Line Level Inputs - 10Hz - 100kHz, +/-0.1dB


Signal to Noise Ratio: (A weighting)
Phono Input - 80dB
Line Level Inputs - 110dB

Channel Separation:
Phono Input - >75dB
Line Level Inputs - >75dB


Digital Section

Frequency Response: 20Hz - 20kHz, +/- 0.5dB max.

Signal to Noise Ratio: 90dB (A weighting)

Digital Inputs: SPDIF LPCM (up to 192kHz 24-bit)

PC-USB:
USB Audio Class 1.0 (up to 96kHz 24-bit)
USB Audio Class 2.0 (up to 192kHz 24-bit)*
* Driver installation required
DSD Replay - native or DoP

Power Consumption: 25 watts

Standby Power Consumption: <0.5 watts="" br="">
Dimensions (W x H x D): 431 x 144 x 348mm

Front Panel Height: 3U (133mm)

Weight: 9.2kg net
