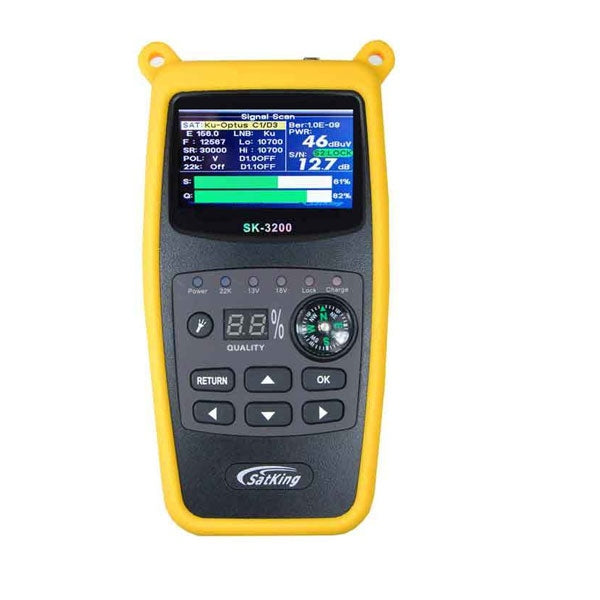

Test Meter Satking/Satlink SK3200/ Satlink WS-6933 is one in the same - a digital satellite Finder specially designed for VAST satellite TV.
The Satlink WS-6933 DVB-S/S2 compliant handheld satellite finder features a bright 2.5" LCD and is capable of measuring satellite signal level & quality. The unit is preset with the VAST parameters, combined with its economical price, makes it an ideal dish pointing tool for occasional installers and portable VAST dish owners.
- Digital meter for signal strength and quality,
- Visual and audible signal lock indicator,
- Calculate Az/El/Skew for any Lat/Long,
- Supports DiSEqC 1.0/1.1 22khz Tone,
- LNB short-circuit protection,
- 7.4V/800mAh Li-Ion battery included,
- Software upgrade via USB port,
- Compact and robust,
- Supports AV in and out, and
- Built-in compass.
Being MPEG 4 the unit has been pre-programmed with the VAST paraFinders pre-set making the Finder very easy to use. Simply plug the unit into the dish and use the signal level bars to align your dish and once the level bars go green and the signal beeper is sounding the dish is aligned correctly and you are on the correct satellite. Then plug the antenna cable into your vast receiver or Foxtel STB and it will scan the channels in for you.
The unit has a built-in high power battery so the unit does not need to be connected to the VAST receiver to be used. Unlike many other lower-priced Finders on the market with this Finder, you can actually receive VAST transponders. Many other mid-lower cost Finders you are actually just receiving the signal from the MPEG2 format and this could end anytime rendering your Finder useless.
Special Note: All VAST services are MPEG4, there are no VAST MPEG2 services. If you have Foxtel and think this Finder sounds perfect for you well it is, you can simply align your dish on the VAST settings or simply select TP 3 in the sat setting menu and the unit will receive the actual Foxtel signal.
SatKing SK_3200 USER MANUALFeatures:
- VAST Compliant
- MPEG4
- 2.4” Colour LCD Screen
- Built-in Speaker
- Built-in torch
- Signal buzzer
- Built-in Compass
- Satellite Alignment Tool built-in
- 800MAh Lithium-Ion Battery
- Software Upgrade via mini USB
- Compact Size
- Signal Too Noise Display
- BER Display
- dBuV Display
- dBm Display
Connections:
- 1x F-Male Sat Input
- 1x Mini USB
- 1x 2.1mm DC Jack
Package Includes:
- 1x Finder
- 1x 240v/12V Power Pack
- 1x Case, 1x Strap
- 1x Battery 800MAh
- 1x Gift Box
Specifications:
- Signal Level: 25 to -65dBm
- L.O: 10,000-12,000 GHz
- Satellite Input: 1x F-Type
- LNB Power: 13/18V
- 22KHz: Yes
- Diseqc: No
- Voltage Input: 12VDC
- Symbol Range 2-45,000
- Video Encoding: MPEG2/MPEG4
- Audio: MPEG-1 Layer II , MPEG4 HE-AAC v2
