School Lockdown Controller A4595A

SKU: 9321758235508

Price:
$949

This lockdown controller complements the A 4565 alert/evac controller and is primarily aimed at schools which require a lockdown warning facility. The controller has provision for a period bell plus a standby, lockdown and all clear tones. These can be activated by the switches on the front panel, by the remote closing contact triggers on the rear of the unit or by the optional wall plate (A 4598) or paging console (A 4660).

A pre bell/chime/tone is also included which can only be triggered by the closing contact on the rear of the unit. All tones are stored on an SD card in MP3 format. Using MP3 files gives the user complete control over the sounds played for each tone. This could be music, a pre-recorded tone or speech etc. The standby and lockdown tones can also be set to loop/repeat via external DIP switches. The order of priority from highest to lowest is all clear, lockdown, standby, bell and pre-bell. If the period bell is activated the period bell switch on the front of the unit will illuminate until the tone finishes. If the standby or lockdown tone is activated, the corresponding switch on the front of the unit will illuminate until the tone finishes. After this, the switch will continue to illuminate until the lockdown overrides the standby condition or the all clear condition is activated. If the all clear tone is activated the all clear switch will illuminate until the tone finishes.

If any wall plates or paging consoles are connected the switches or LEDs on these units will illuminate accordingly. The unit is powered from a 24V DC source (power supply included) and separate 24V DC switched outputs are supplied for remote triggering (of sirens/strobes etc) for all tone conditions (pre-bell, period bell, standby, lockdown and all clear). Connections to the paging consoles and wall plates are made via Cat5e cabling. Up to four paging consoles or 16 remote wall plates can be connected at one time. A standard line level output is provided for connection to the schools PA system.

The lockdown unit can be connected to the A 4565 alert/evac controller if an EWIS system is also required.

Features

  • 1U 19” rack mount
  • Interfaces with A 4565 for a complete fire/evac & lockdown system
  • 24V DC operation (plugpack included)
  • Period bell, standby, lock down and all clear controls with remote contacts
  • Connects to lockdown wallplate and/or paging console via Cat5e UTP cabling
  • MP3 SD card tone & audio announcement playback
  • RCA audio output
  • Up to 4 paging consoles and 16 remote wallplates per system
  • Flip up switch covers to prevent accidental triggering
  • Adjustable rear mounted level control
  • Switched 24V outputs for all conditions (all clear, standby, lockdown, bell, pre-bell, emergency & common contacts).

Instructions

SD Card Library

Specifications

  • Output Level: 0dBm into 600Ω
  • Indicators: Power on, Bell/Prebell Active, Mp3 Error, Aux Mp3 Active,PA Active
  • MP3 File Format: up to 320kbps, 44.1kHz, 32bit,VBR or CBR, Stereo (even better as mono).
  • Power Supply: 24V DC @ 2 Amp
  • Dimensions: ≈ 483W x 125D x 44H
  • Weight: ≈ 1.6 kg
  • Colour: Black

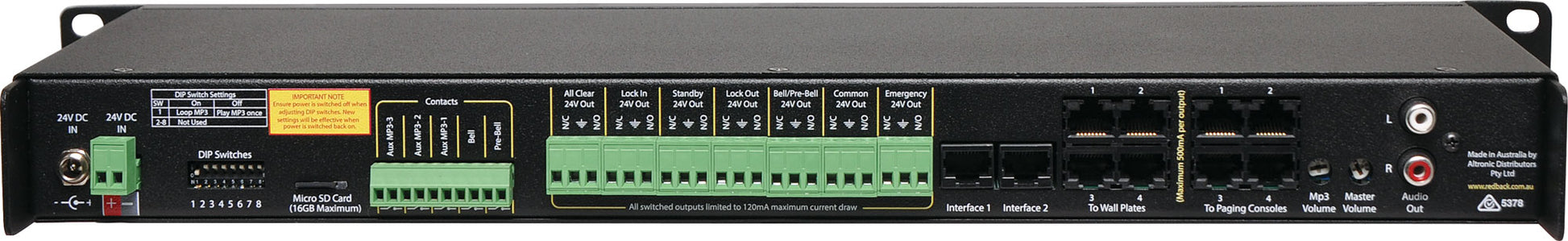

Output Connectors:

  • Audio Output: RCA Stereo Socket
  • Emergency 24V DC Out: Euroblock terminal
  • Common 24V DC Out: Euroblock terminal
  • Prebell/Bell 24V DC Out: Euroblock terminal
  • Standby 24V DC Out: Euroblock terminal
  • Lock In 24V DC Out: Euroblock terminal
  • Lock Out 24V DC Out: Euroblock terminal
  • All Clear 24V DC Out: Euroblock terminal
  • PLEASE NOTE: Maximum output load per output is 120mA

Input Connectors:

  • Paging Console Input: 4 x RJ45 8P8C
  • Wall Plate Input: 4 x RJ45 8P8C
  • 24V DC Power: Euroblock terminal
  • 24V DC Power: 2.1mm JACK (centre +ve)
  • PreBell, Bell, AuxMp3 triggers: Euroblock terminal

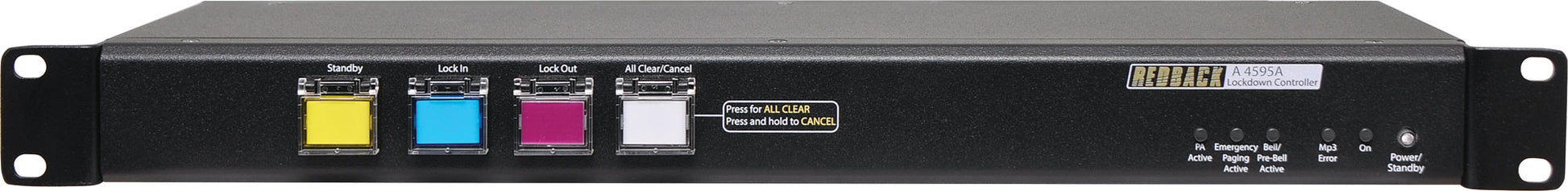

Controls:

  • MP3 Volume: Rear Volume
  • Master Volume: Rear Volume
  • Power: On/Off Switch
  • Standby Switch: Illuminated Push Switch
  • Lock In Switch: Illuminated Push Switch
  • Lock Out Switch: Illuminated Push Switch
