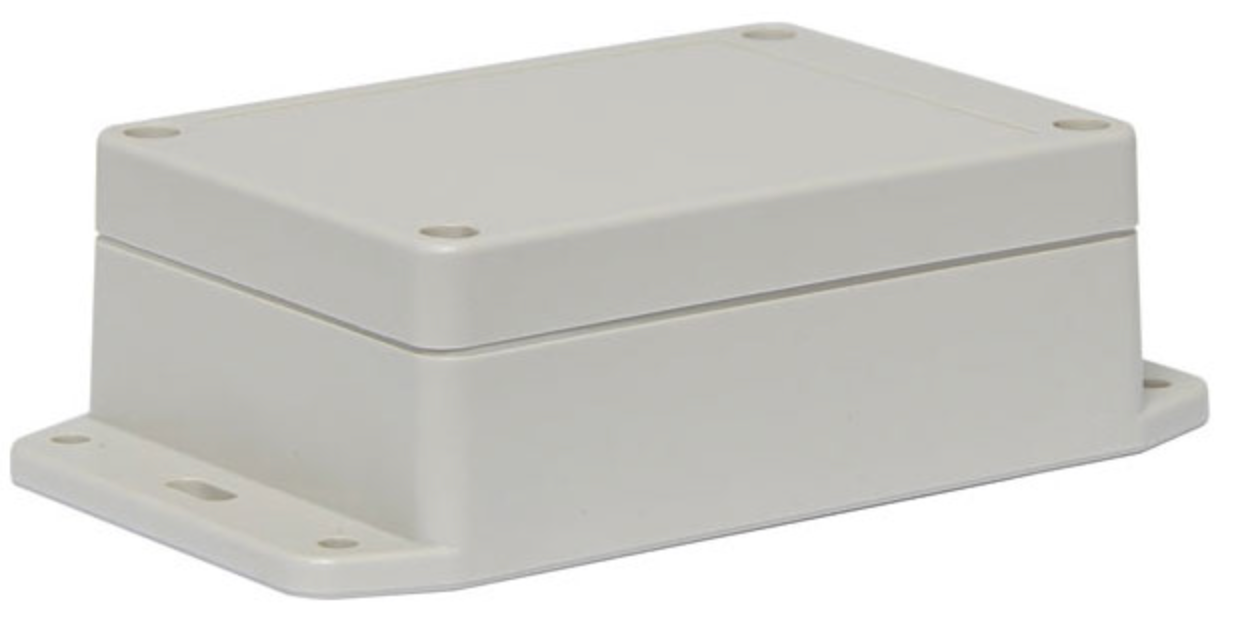

Sealed ABS Flange Mount Enclosure 105x75x40mm H0301F

SKU: H0301F

Price:
$19.95

This sealed ABS flange mount enclosure is manufactured by Ritec and measures 105L x 75W x 40Hmm. It includes mounting flanges for surface mounting. Supplied with neoprene lid sealing gasket. With the seal installed, these enclosures meet IP65 dust and hose proof standard. Supplied with a solid light grey lid. PCB mounting points are moulded into the enclosure base. These sturdy enclosures have 3mm thick walls and are rated to UL 94-HB (-30° to 80°C). Not UV stabilised.

External Dimensions: 105L x 75W x 40H mm

Features

  • Meets IP65 Dust and Hose-proof standards
  • Brass screw thread inserts
  • Neoprene gasket seal
  • Moulded PCB mounting points
  • Manufactured from high impact ABS
  • Useable temperature range of -40°C to +80°C
