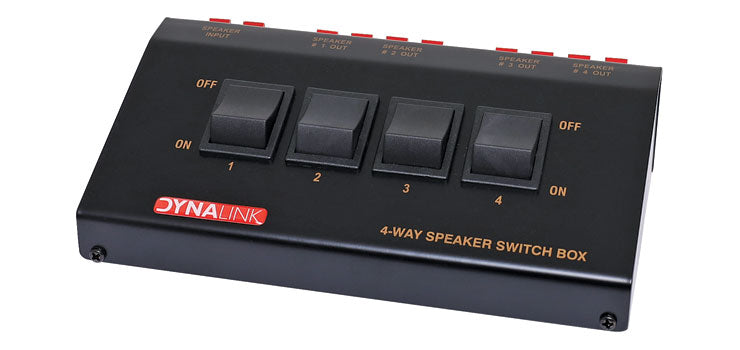

Switch Box Speaker 4 Way A3026A

4 way audio speaker switch box for switching between four pairs of speakers eg: to switch between lounge and patio speakers. Incorporates 4 independent stereo speaker switches. Allows selection of a combination of speakers, or all speakers on at once. Maintains correct impedance load for the amplifier (4Ω minimum).

Operation Note: Speaker 2 and 4 output will only function when speakers 1 and 3 are connected. However, outputs 1 and 3 do not need to be switched on for outputs 2 and 4 to function.

Features

• Sturdy steel case construction
• Spring loaded speaker wire connection terminals
• Connection for two pairs of stereo speakers
• Suits standard low impedance speakers
• Recommended impedance for speakers: 8 ohms
• Select any or all zones (see operation note)
• No power required to operate
