Thermostat 60 Deg N/c ST3821
Thermostat 60 Deg N/c ST3821
Regular price
$7.50
Regular price
Sale price
$7.50
Unit price
per
Taxes included.
Couldn't load pickup availability

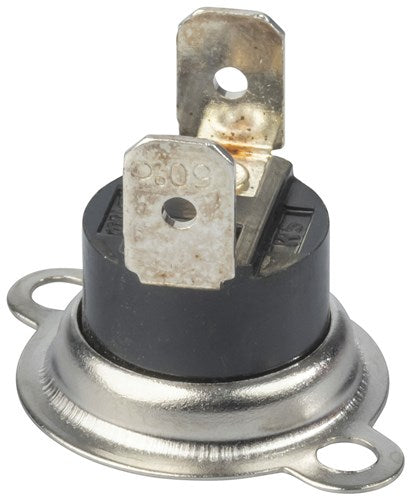

This phenolic-housed unit attaches to any metal surface which needs to be heat monitored. When the surface meets or exceeds a certain temperature the SPST bi-metallic element goes open circuit, switching the device off. After the problem has been addressed, device will reset once the breaker detects a targeted lower temperature.
Please reference adjacent specifications tab for further product information.
Specifications
| Type of thermal switch or fuse : Thermal circuit breaker |
| Thermal reset method : Automatic |
| Thermal trip temperature : 60°C |
| Thermal reset temp : 40°C |
| Normally open or normally closed : Normally closed |
| operating tolerance : +/- 5°C (32VDC), +/- 8°C (125VAC), +/-10°C (250VAC) |
| reset differential : 10°C - 50°C |
| contact endurance : 32VDC-100mA, 125VAC-10A, 250VAC-6A |
| operation cycles : 50000, 100000, 30000 |

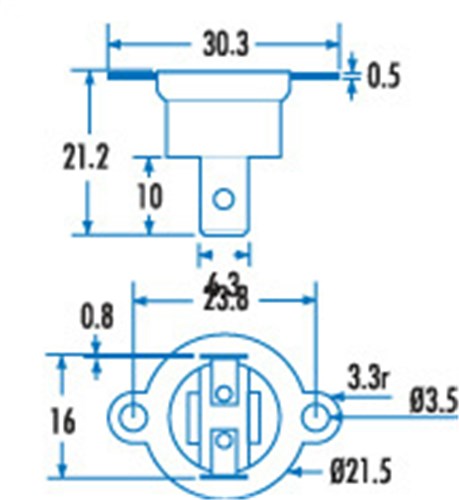

| Height : 21.2mm |
| Diameter : 30.3mm |
| Packaged Volume : 0.01l |
| Packaged Weight : 0kg |
| Packaged Length : 3cm |
| Packaged Width : 2cm |
| Packaged Height : 2cm |
