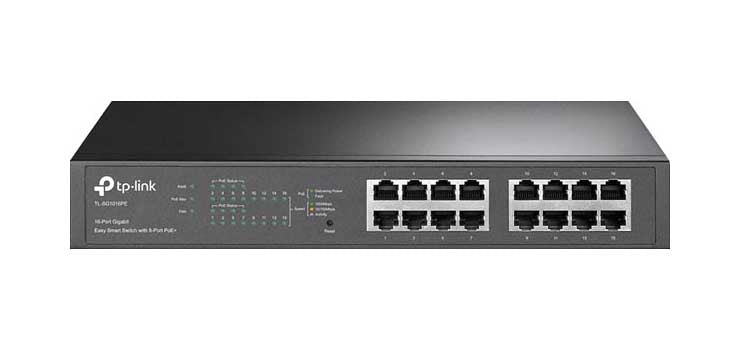

TL-SG1016PE 16 Port Gigabit PoE Switch D4206

SKU: 9321758191149


16-Port Gigabit Desktop Switch with 8-Port PoE provides the seamless network connection. It integrates 1000Mbps Gigabit Ethernet and 10/100Mbps Fast Ethernet network capabilities.

8 of the 16 Auto-Negotiation RJ45 ports (port-1 to port-8) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as APs or IP Phones, etc.

D 4206 is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the D 4206 16-Port Gigabit Desktop Switch with 8-Port PoE is a great selection for expanding your home or office network.

Hardware Specifications
Standards and Protocols:
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
- 16 10/100/1000Mbps RJ45 Ports
- AUTO Negotiation/AUTO MDI/MDIX
Network Media:
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity: 1
Power Supply: 100-240VAC, 50/60Hz
Power Consumption: Maximum: 124.4W (220V/50Hz)
PoE Ports (RJ45): Standard: 802.3 at compliant
PoE Ports: Port 1- Port 8
PoE Power Budget: 110W
Dimensions: 294W x 180D x 44H mm
Switching Capacity: 32Gbps
Packet Forwarding Rate: 23.8Mbps
MAC Address Table: 8K
Packet Buffer Memory: 4.1Mbit
Jumbo Frame: 9KB

Software Specifications
Quality of Service:
- Support Port-Based/802.1p/DSCP priority
- Support 4 priority queues
- Rate Limit
- Storm Control
L2 Features:
- IGMP Snooping V1/V2/V3
- Link Aggregation
- Port Mirroring
- Cable Diagnostics
- Loop Prevention
- Supports up to 128 VLANs simultaneously (out of 4K VLAN IDs)
- MTU/Port/Tag VLAN
- Web-based GUI
- Easy Smart Configuration Utility
Transmission Method: Store-And-Forward

Certification: FCC, CE, RoHS
Package Contents:
- TL-SG1016PE
- Power Cord
- Installation Guide
- Resource CD
- Rackmount Kit
- Rubber Feet
System Requirements: Microsoft® Windows® for running Utility
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
