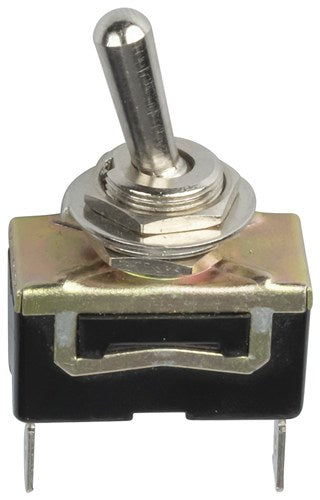

Toggle Switch SPST 20A 12V Momentary ST0577
Toggle Switch SPST 20A 12V Momentary ST0577
Regular price
$9.95
Regular price
Sale price
$9.95
Unit price
per
Taxes included.
Couldn't load pickup availability
This switch is a SPST momentary action, spring return switch, which is ideal for launching missiles! Suits our ST-0578 Missile Switch Cover.
- ST-0577 Momentary
- ST-0579 Toggle
Specifications
| DC current rating : 20A |
| DC Voltage : 12V |
| Length : 29.5mm |
| Width : 17mm |
| Mounting Method : Behind Panel |
| Packaged Volume : 0.02l |
| Packaged Weight : 0.02kg |
| Packaged Length : 4.2cm |
| Packaged Width : 2.8cm |
| Packaged Height : 1.7cm |
| Switch Type : Toggle |
| Poles / Contacts : 1 pole |
| Throws / Positions : 1pos |
| Switch Function : Single Action Momentary |
| Cycle Life : 40000 cycles |
| Contact Resistance : 10MΩ |
| Insulation Resistance : 1000MΩ |
| Dielectric Strength : 1000V |
| Actuator Length : 16mm |
| Actuator Width : 13mm |
