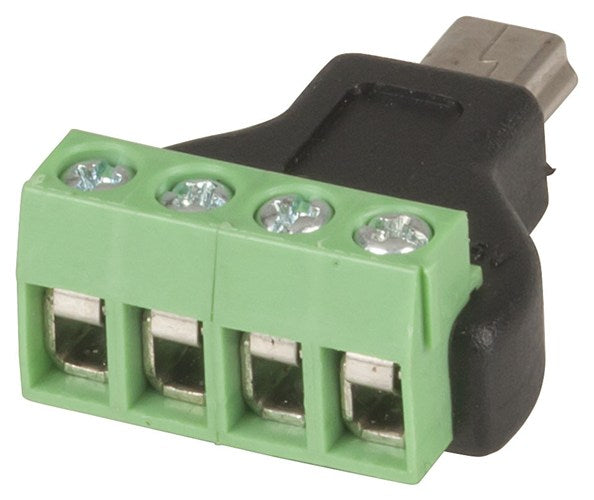

USB 2.0 Mini B Plug to 4-Way Screw Terminal Header Adaptor PA0950

SKU: 9319236758786


USB Mini B plug to a 4-way screw terminal block for temporary or prototyping applications. No soldering required.
  • Insulation Resistance: 100MΩ @ 500VDC min


DC current rating : 1.5A
DC Voltage : 5V
Length : 32mm
Width : 25mm
Height : 12mm
Weight : 7g
Packaged Volume : 0.01l
Packaged Weight : 0.01kg
Packaged Length : 3cm
Packaged Width : 2cm
Packaged Height : 1cm
Plug or Socket Type : USB Mini Type B
Device : Plug
Attachment Method : Screw Terminals
Contacts / Pins : 4pc
Contact resistance : 30mΩ, 0mΩ
Insulation resistance : 100MΩ
