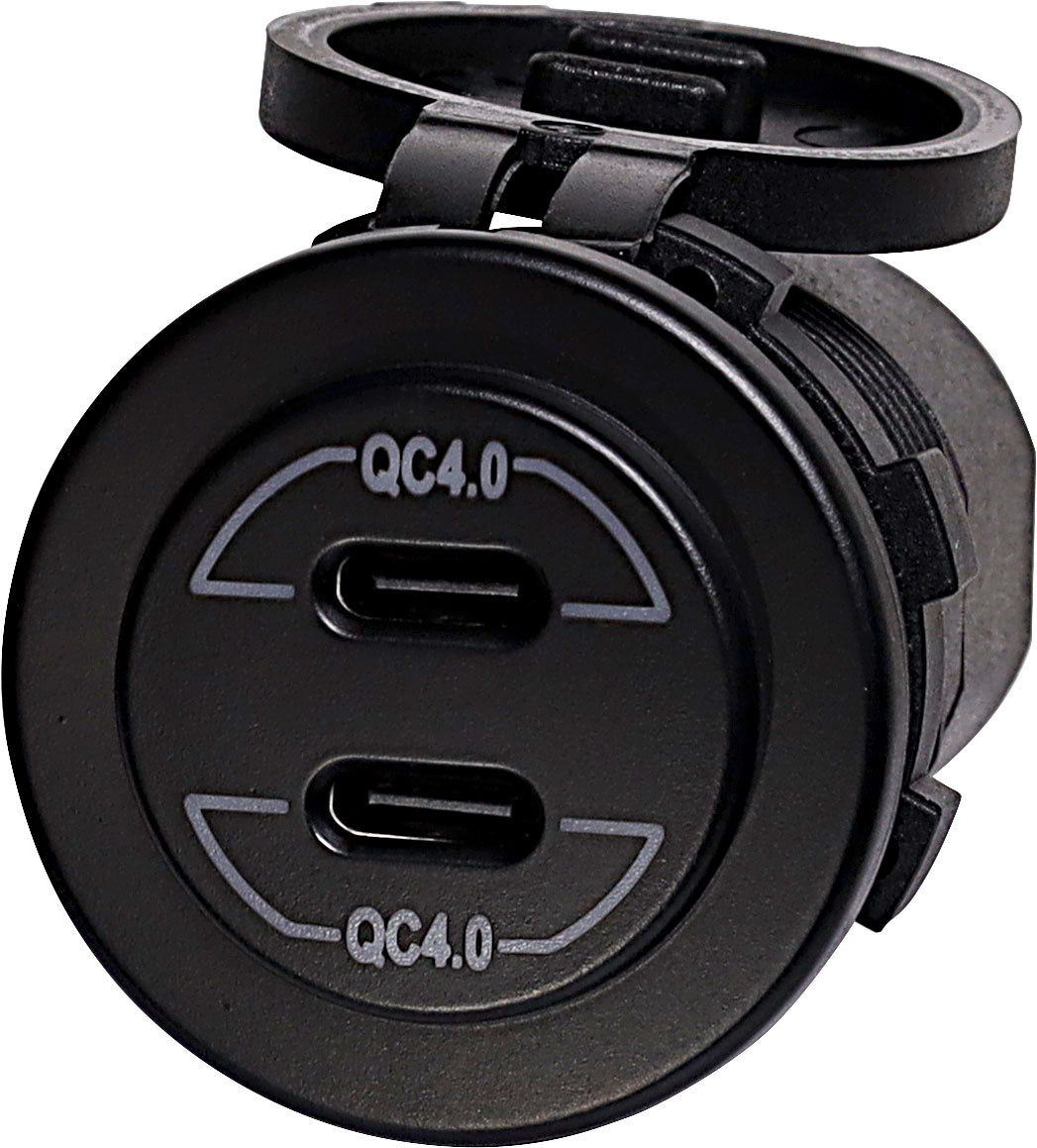

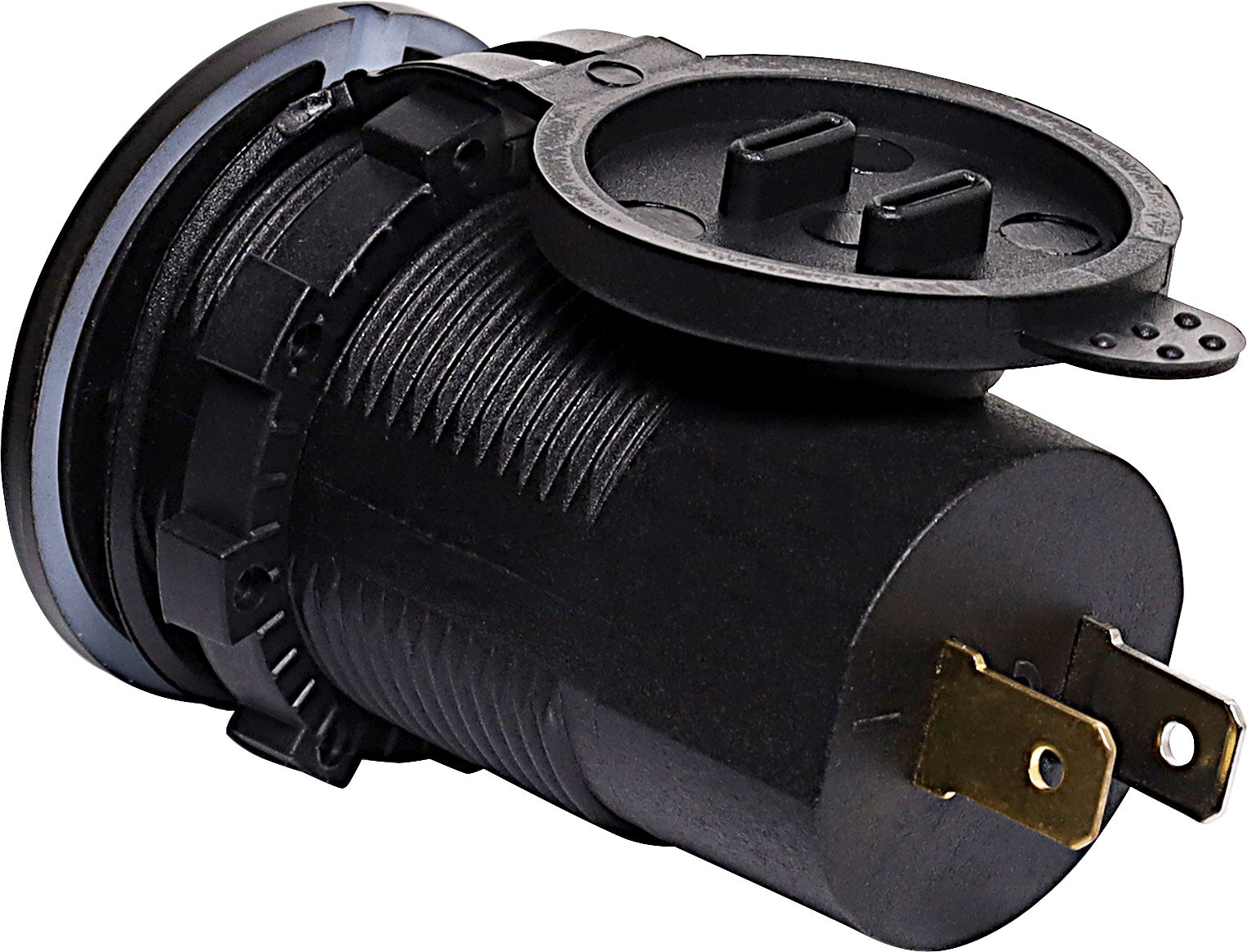

USB Charging Panel Mount Socket Dual USB-C QC4.0 PC0667
USB Charging Panel Mount Socket Dual USB-C QC4.0 PC0667
Regular price
$34.95
Regular price
Sale price
$34.95
Unit price
per
Taxes included.
Couldn't load pickup availability
Upgrade your charging setup with the 4.0A Dual USB Type-C Charging Panel Mount Socket, designed for fast, efficient power delivery in a sleek and durable form. Whether for cars, vehicles, RVs, or custom projects, this socket provides reliable charging for all your USB-C devices.
Specifications
- USB type: Type C X 1, Type C X1
- The number of USB Ports: 2
- Normal voltage: 24VDC
- Operating Voltage: 9V-30V DC
- Peak Voltage: 34V DC(max)(3-4seconds)
- USB TypeC -1 output:
- QC4.0 (5V/3A/15W, 9V/3A/27W, 15V/3A/45W, 20V/3A/60W)
- USB TypeC -1 output:
- QC4.0 (5V/3A/15W, 9V/3A/27W, 15V/3A/45W, 20V/3A/60W)
- Current Draw Quiescent current: 5MA
- Life: 5000 operating cycles
- Sealing:IP65
- Terminals: Copper/nickel plating 1/4"(6.3mm)
- Operating Temperature: -20 - +80°C
- Panel Opening: 29.2 x26. 2 mm
- Low-voltage protection: YES (Lower than 40V)
- Over current protection: Yes
- Over temperature protection: Yes
- Short circuit protection: Yes
- Reverse polarity protection: Yes
