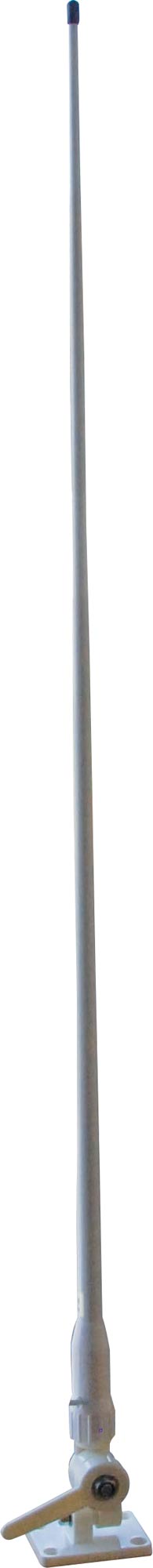

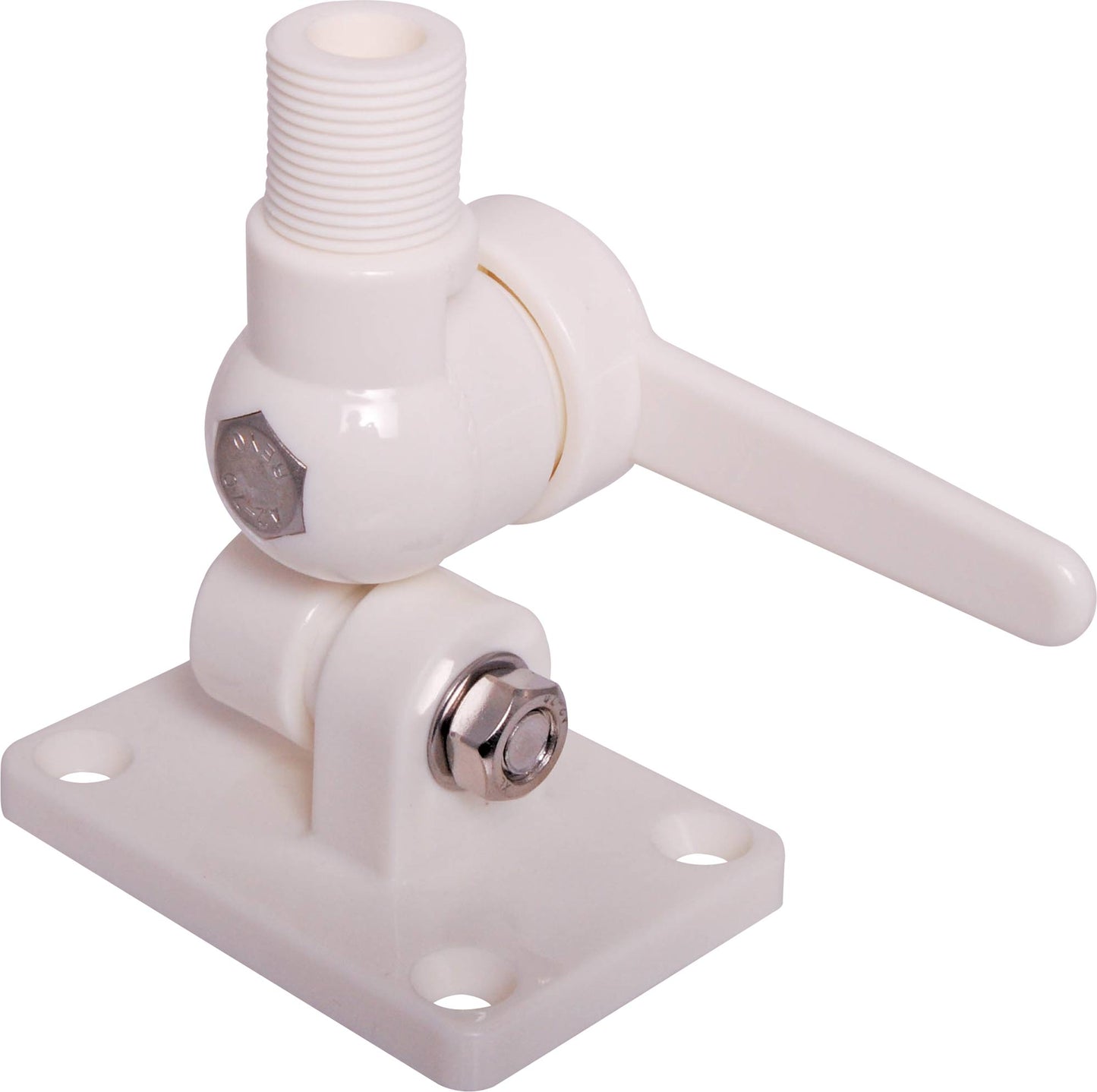

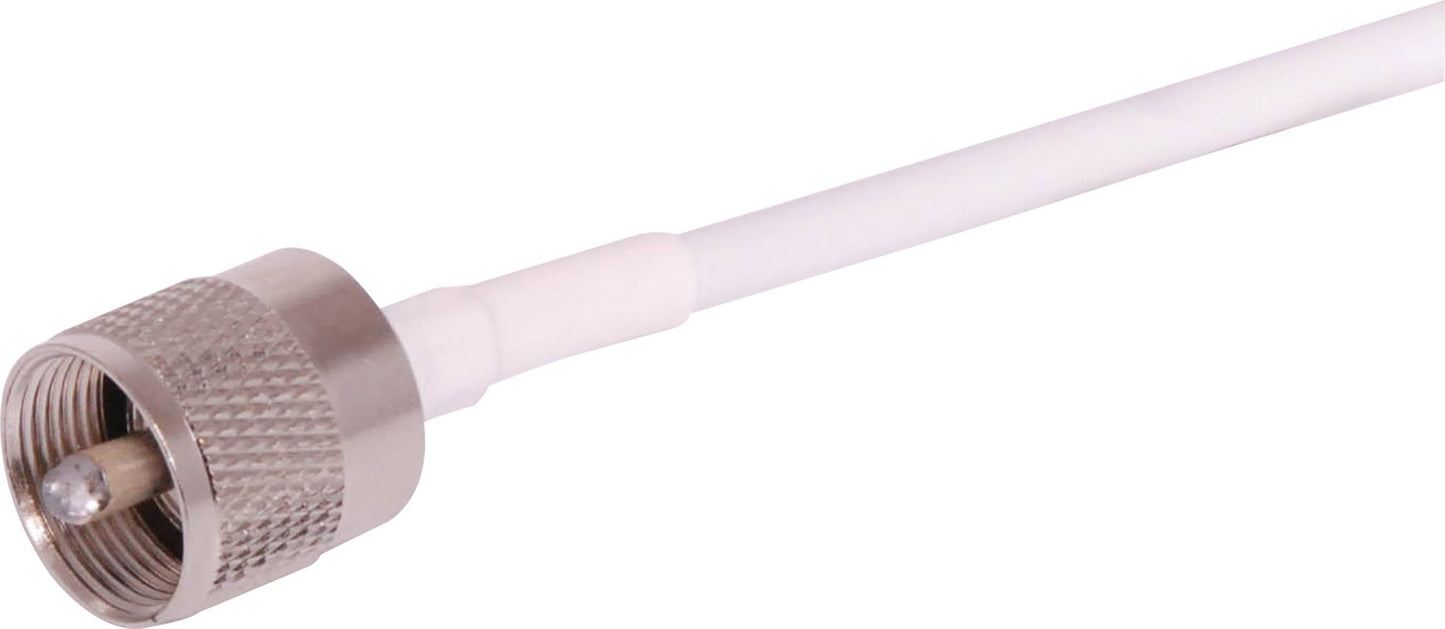

A 3db antenna with elevated feed, adjustable nylon mounting plate and solid white fiberglass whip. Ideal for use in marine applications. Includes 4.5m of low-loss RG58 coax and PL259 connector. Height 1.15m.
Specifications
- Antenna dimensions: 115H x 2W cm
- Frequency range: 156-163 MHz
- Bandwidth: 5 MHz within 2.0:1 VSWR
- Impedance: 50 Ohm
- VSWR: nominally 1.5:1 at 159.5 MHz
- Gain: 3dB
- Polarization: Vertical
- Maximum power Input: 50W
- Horizontal beam width: 360º
- Vertical beam width: 58º
- DC Ground: No DC Ground
- Whip material: Fiberglass
- Ferrule: POM
- Coax: RG-58U(white),4.5m
- Connector: PL259
- Weight: 420g
