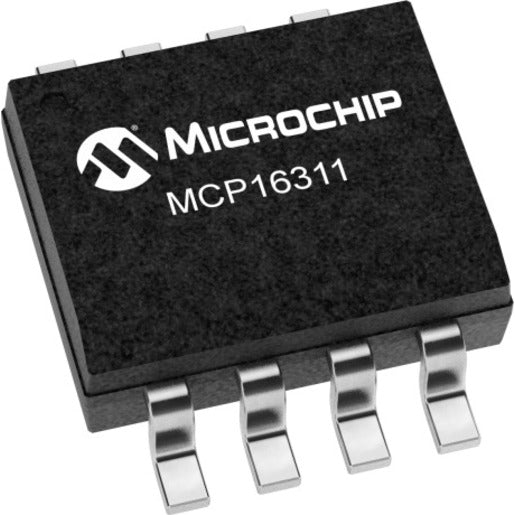

The MCP16311 is a compact, high-efficiency, fixed frequency PWM/PFM, synchronous step-down DC-DC converter that operates from input voltage sources up to 30V. Integrated features include a high-side and a low-side switch, fixed frequency Peak Current Mode Control, internal compensation, peak-current limit and over temperature protection. The MCP16311 provides all the active functions for local DC-DC conversion, with fast transient response and accurate regulation.
Specifications
Active voltage regulator
- Regulator package: SMD package number
-
Regulator maximum current: 1 A
-
Regulator input voltage: 4.4 V
-
Regulator input voltage: 30 V
-
Regulator output voltage: 2 V
-
Regulator output voltage: 24 V
Active Component
- Active number of legs: 8 count
-
Max temperature: 125 °C
-
Minimum temperature: -40 °C
Product Dimensions
- Weight: 140 mg
