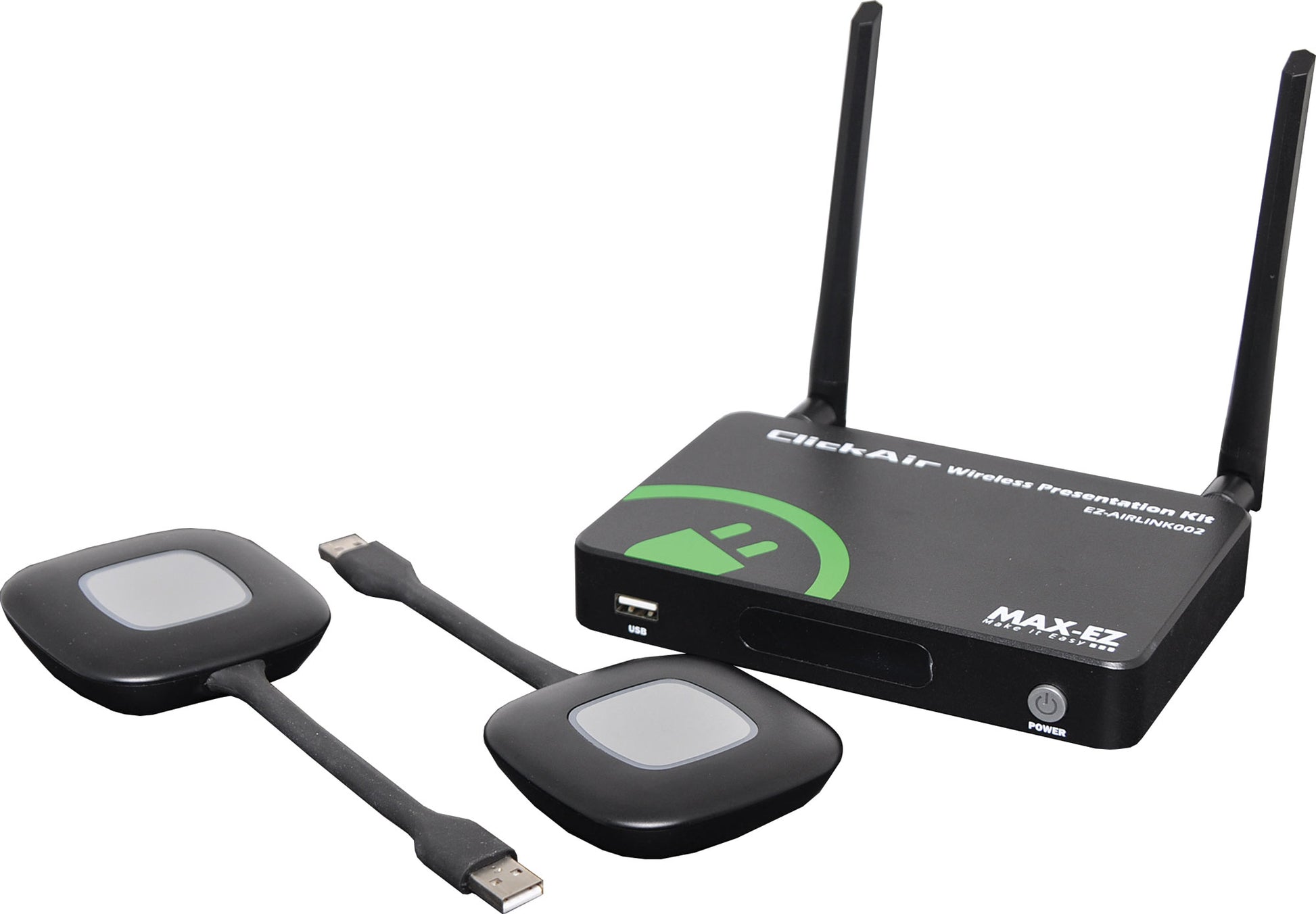

This wireless presentation kit features two USB-buttons and allows users to share content from their laptops or mobile devices on a large meeting room screen in a very simple way- without cables and additional configuration, just by clicking the button of the USB-button connected to a laptop,or using the app for iPhone or Android.
This makes the meeting more efficient and productive. Additionally, a HDMI input supported up to 4k@60Hz 4:4:4 can be directly connected to the base-unit, and a HDMI output supported 4K@60Hz 4:4:4 video up-scaling/down-scaling technology is able to auto adjust the output resolution in consonance with the HDMI display.
Features
- PC/MAC Compatible: The USB button is for both Windows PC and Apple Mac, which communicating with base-unit.
- iOS/Android APP: Provided to share content on iOS &Android mobile devices.
- Airplay:Screen mirroring supports iOS devices without using an app. Fast-switch: Switching speed between different sources is less than 1s.
- USB-HID T ouch:Built-in USB-HID function for connecting touch-displays and interactive white boards.
- POE: Optional powering of the base-unit via POE technology.
- Security: AES WPA2PSK authentication protocol ensures secure signal
- transmission.
- Local Media Playback: Push videos, pictures and music for playback to the screen via Android or iOS app.
- File-exchange: Use PC or MAC browser to transfer all kinds of media to the base- unit wirelessly.
- Remote-view: Allows remote-view of the active signal on the participant's mobile device.
- Remote-mouse:Connecting to the app, use the gyroscope of a mobile device to control the current presenter's PC or Mac.
- Preview Window: Connecting to the app, use a mobile device to preview the entire list of connected lap-tops and select one of the list to be mirrored.
- Wireless AP: Built-in Wi-Fi access point to set up a standalone Wi-Fi network between PC-sources/ mobile devices and the base-unit.
- LAN-network:Additional LAN port on base-unit, to link mobile devices to a LAN network or internet whilst being connected to the base-unit over Wi-Fi.
- 4K@60Hz 4:4:4 Scaling Output:Powerful built-in HDMI 2.0 scaling-engine for high resolution 4K/60Hz signal output.
- AUX 4K@60Hz 4:4:4 Input: Auxiliary HDMI input for connection of external 4K I 60Hz HDMI sources.
- AUDIO In/Out: For feeding local stereo signals into the base-unit and for connecting the de-embedded audio to a downstream audio system.
Specifications

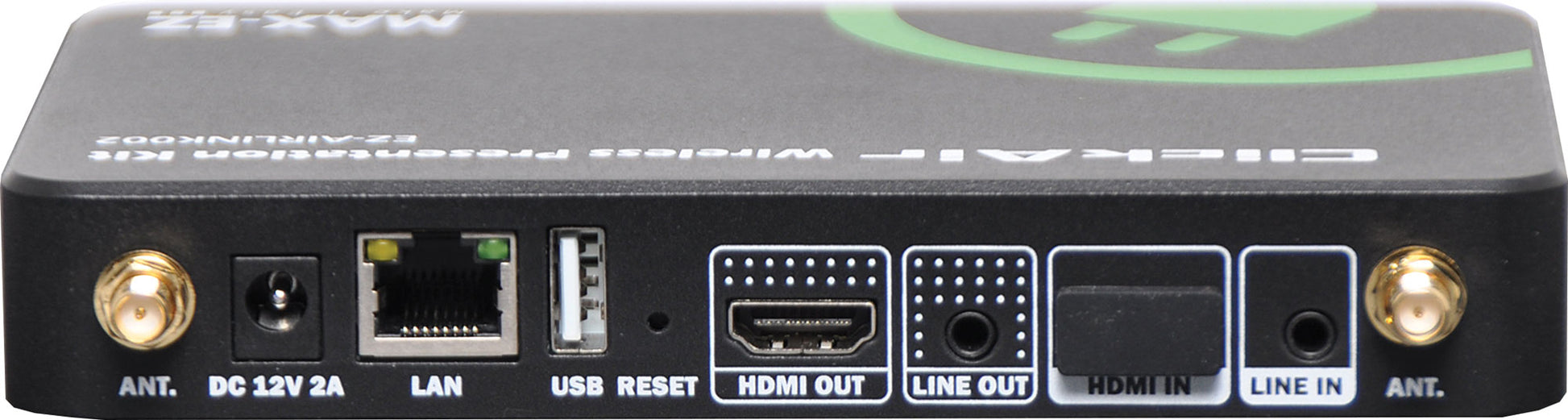

Base-unit Inputs:
- - 2 x wireless antenna (IEEE 802.11n/ac)
- - 1 x HDMI (Type A 19-pin female)
- - 1 x stereo audio (3.5mm mini jack)
Base-unit Outputs:
- - 1 x HDMI (Type A 19-pin female)
- - 1 x stereo audio (3.5mm mini jack)
Base-unit Additional Ports:
- - 1 x Ethernet (RJ45)
- - 2 x USB (Type-A connector)
- USB-button Ports: 1 x USB (Type-A connector)
Performance:
- - Wireless transmission protocol: IEEE 802.11n/ ac
- - Frequency Band: 2.4GHz or 5GHz
- - Encryption: AES WPA PSK, WPA2 PSK
- - Wireless data rate: Up to 1Gbps
- - Transmission distance: Up to 35m (114ft)
- - Wireless transmission video capacity: 1080P@ <60Hz via Android app or Airplay (for iOS devices)
- 1080P@ <30Hz via USB-button
- - Simultaneous connections: Up to 14 (USB-button or mobile device together)
- - Content windows on main screen: 1
- - Latency time for 1080P signal transmission: 130ms
- - Latency mouse operation: 20ms
- - Maximum Resolution Support 4K@60Hz 4:4:4
OS Support:
- - Windows: all Windows versions
- - Mac OS: Mac OS X 10.6 and above
- - lOS:iOS8.0 and above
- - Android: Android 2.3 and above
Power Consumption:
- - Base-unit ≤ 10W
- - USB-button: ≤ 2W
- Device Dimension (LxWx H):
- - Base-unit: 160mm x 147mm x 25mm (6.30" X 5.79" X 0.98")
- - USB-button body: 76mm x 76mm x 19mm
- (2.99" x 2.99" x 0.75"), USB-button cable 120mm
Weight:
- - Base-Unit: 450g (0.991bs) with antennas
- - USB-button: 90g (0.21bs)
